Highlights:

HD 304 stainless steel mirror panel, luxury design, ultra-thin embedded box design, suitable for 6cm wall installation.

Features & Functions:

① Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.

② Smart Deodorant:: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent the trap from drying up and odor reversing.

③Clean & Hygienic: Self-open and close w/o any touch can effectively avoid cross-infection of bacteria.

④Water-saving: It can adjust flushing time automatically according to different using frequency,water saving function significantly.

⑤Convenient to Maintain:With built-in water regulating valve & filter, non-professionals can easily adjust water volume and clean the filter.

⑥Optional Power Supply: Both AC 220V and DC 6V battery operation for optional.

⑦Power Saving: 4pcs of AA alkaline batteries can last for 2 years based on 300 cycles/day.

Specification：

① Power:DC 6V/ AC 220V

②Standby power consumption: ≤0.6W(AC)

③ Detection zone:70cm±10%(To Standard White Board)

④ Suitable water pressure:0.05MPa - 0.6MPa（Best Water Pressure: 0.1-0.3MPa）

⑤ Ambient temperature:1 — 55℃

⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″

⑦ Dimensions: Panel: 130x130mm; embedded case: 168x125x67mm

⑧Standard: CJ/T194    QB2948

Material :

① panel: 304 stainless steel

② embedded box: 304 stainless steel

③ Inlet and outlet parts: brass

④ Pipe: 304 stainless steel

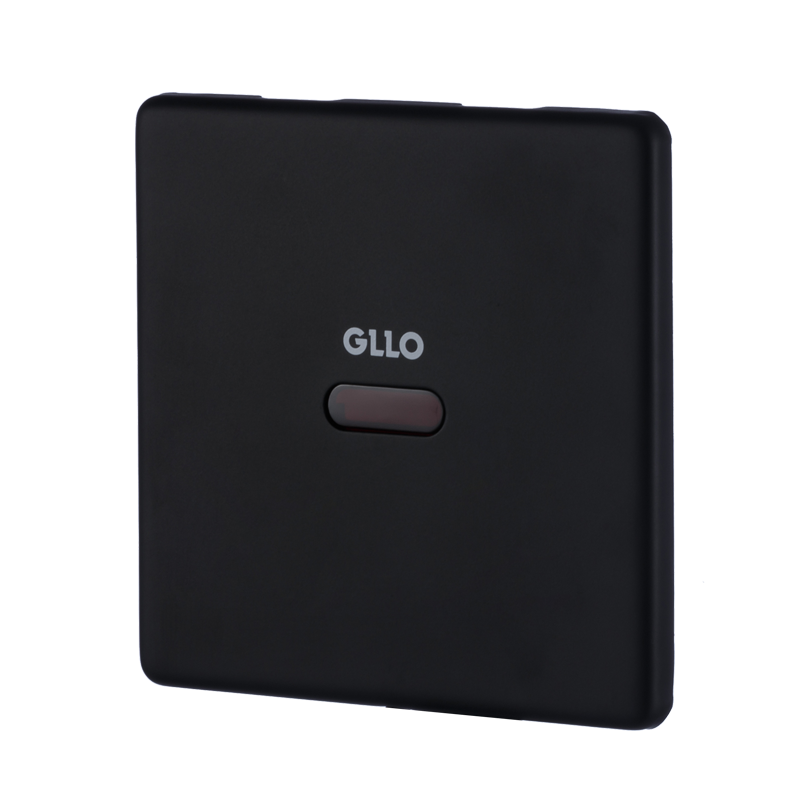

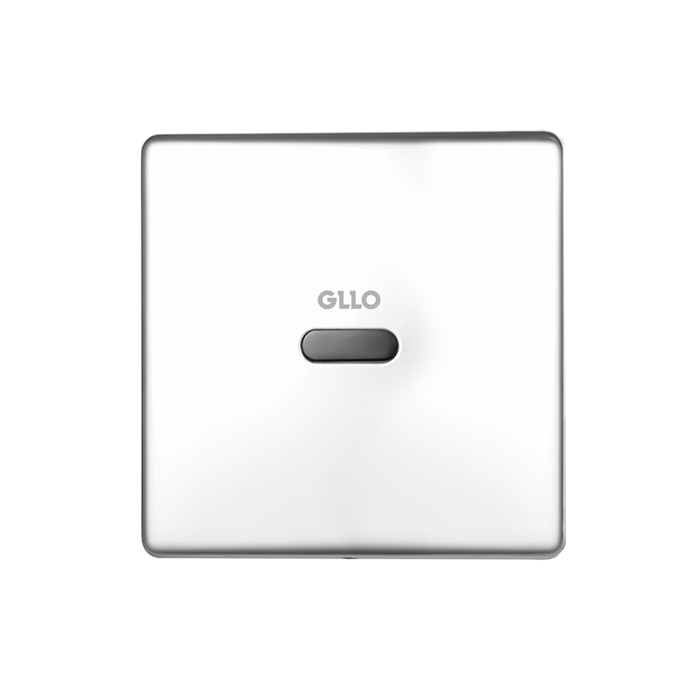

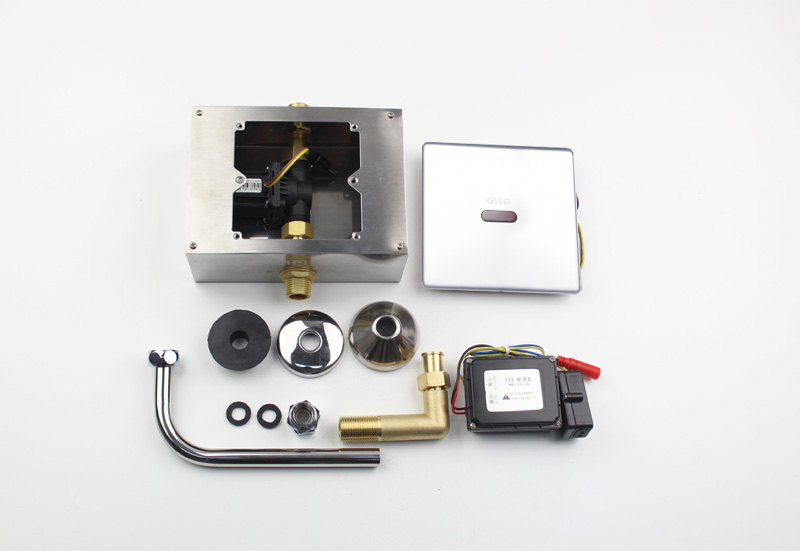

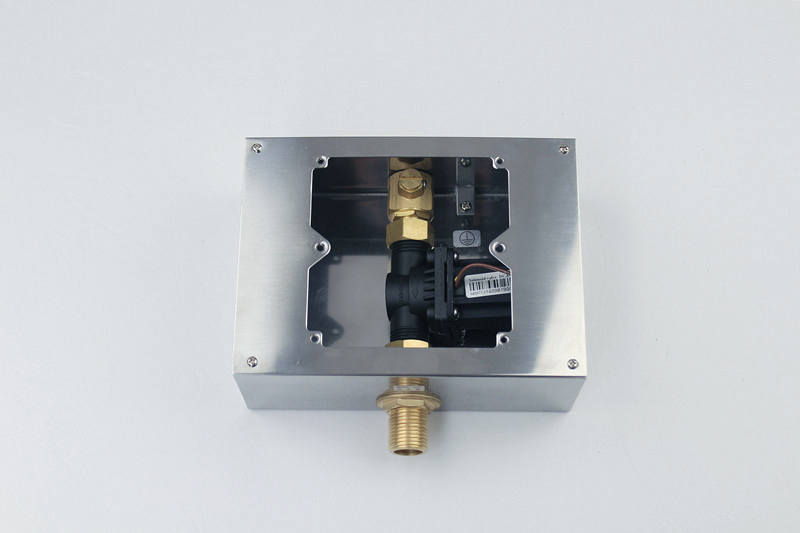

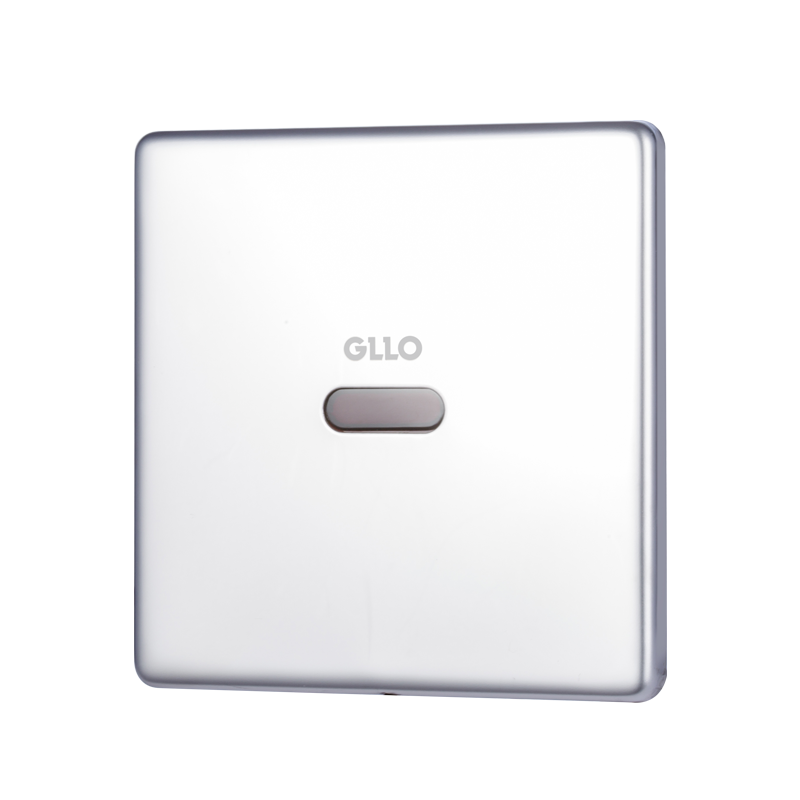

Product display:

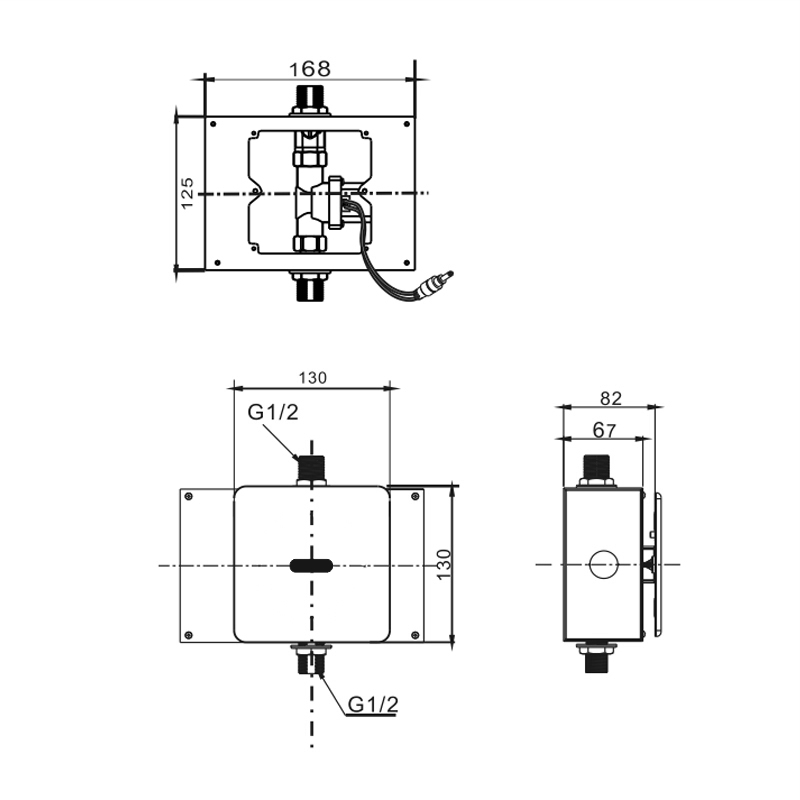

Product size chart:

Installation size chart:
