Highlights:

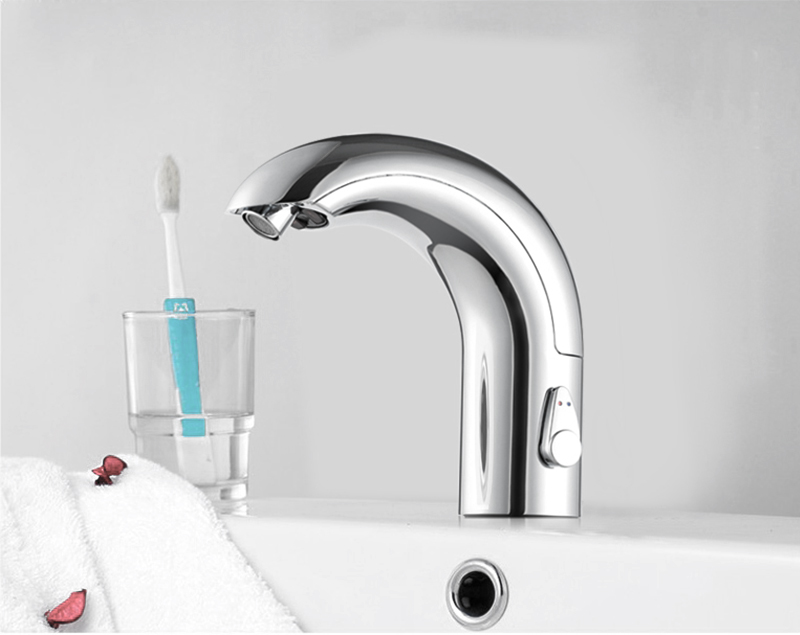

Dual induction temp.-adjusting faucet, with dual induction window, which can manually adjust the suitable water temperature, integrated design and easy installation.

Features & Functions

1.Integrated design: The electronic induction circuit components and solenoid valves are integrated in the faucet. There is no component outside the faucet, just install it according to the ordinary faucet.

2.Water saving&Hygienic: Water comes out once your hands approach its sensor eye and stops when you draw your hands back. it is convenient, hygienic and able to avoid bacterial mutual-infection effectively.

3.Energy saving: 2 PCS LR6 AA alkaline batteries can be used more than 200,000 times.

4.Intelligent: The control circuit is super-minimized design and its action is controlled by micro-computer.The function of the front induction device is that water comes out once your hands approach its sensor eye and stops when you draw your hands back.The water shutdown automatically when continuous induction over 30 seconds .The function of the upper induction device is that the water discharge time exceeds the set time for 30 seconds, the water turned off automatically, or it is sensed again within 30 seconds and the water can be turned off.

5.Low power tips: Put your hand in front of the faucet,the indicator lights flashing intermittently which indicating that the battery power is close to use, the battery needs to be replaced; when the indicator lights flashing continuously, the battery has been used up,the faucet stops working. At this time you must replace it with a new battery.The faucet returned to normal work.

6.Built-in filter: The inlet pipe is equipped with a filter,which can filter sand, stone and other impurities in the waterway.

7.Temperature adjustment function: Built-in temperature adjustment function, the user can adjust the water temperature as needed, rotate the temperature control handle, adjust clockwise to low temperature, counterclockwise to high temperature.

Specification:

1.Power supply: DC 3V (2 pcs LR6 AA alkaline batteries)

2.Static power consumption: < 0.2mW (DC)

3.Detection zone:After 6 seconds of faucet installed and battery connected, the induction distance will be set automatically according to the installed washbasin.

4.Dia.of inlet/outlet pipe:(DN15)G1/2″
5.Suitable water pressure:0.05MPa - 0.6MPa

6.Waterproof grade: IP56

7.Working voltage range: 2.6-3.3V

8.Timeout protection function:30±5 seconds

9.Variation of induction range affected by voltage: ≤3cm

Material:

1 Faucet body: brass

2 Inlet and outlet: brass

3 Pipe: engineering ABS (embedded copper nut)
