Highlight：

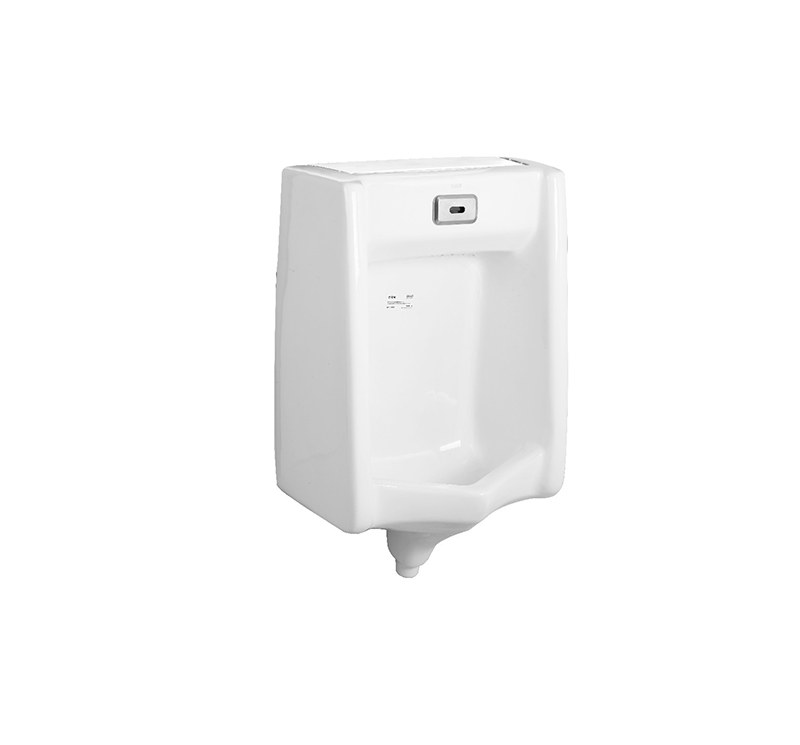

Hanging type sensor urinal, small and light appearance, arc design, with a modern sense.

Features & Functions:

1. Flush Automatically: After being used, the urinal will flush automatically

2.Smart Deodorant: When the urinal not used for a long time, it will flush automatically every 24 hours to prevent the trap from drying up and odor reversing.

3.Clean & Hygienic: Self-open and close w/o any touch can effectively avoid cross-infection of bacteria.

4.Water-saving: It can adjust flushing time automatically according to different using frequency, water-saving function significantly.

5.Convenient to maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust water volume and clean the filter.

6.Intelligent Control: The super mini-designed control circuit  & controlled by micro-computer. The detection zone has been configured before ex-factory. Any manual adjustment is needless.

7.Installation Feature: Integrate sensor & flusher with ceramic. Don’t need to pre-embed sensor equipment. Quick & simple installation w/o any special requirement to wall thickness.

8.Water shut off automatically when the power supply abnormal : when the battery power insufficient, the sensor can stop the flushing action automatically.

Specifications:

 ① Power:DC 6V/AC 220V

② Power consumptionin static:≤0.5mW(DC)
③ Ambient temperature:1 — 55℃
④ Detection zone:30-40cm(±10%)(To Standard White Board)
⑤ Dia.of inlet/outlet pipe:(DN15)G1/2″

⑥ Suitable water pressure:0.05MPa - 0.7MPa

⑦Flow rate: ≥0.25L/s
⑧Standard: CJ/T194

Inlet and Outlet Ways:

Wall Inlet and wall drainage;Wall Inlet and ground drainage

Installation Notes

1. Backwater integrated ceramic urinal, the end of the inlet pipe is completely flat with the tile surface.

2.The diameter of the inlet and outlet pipe is 12.7 mm ((DN15)G1/2″), and the inlet joint match with G1/2″internal thread.

3.The installation height (530mm) shown is based on the asian height characteristics and which is 70mm lower than the national standard(600mm). User can decide whether to adopt it.
