Highlight：

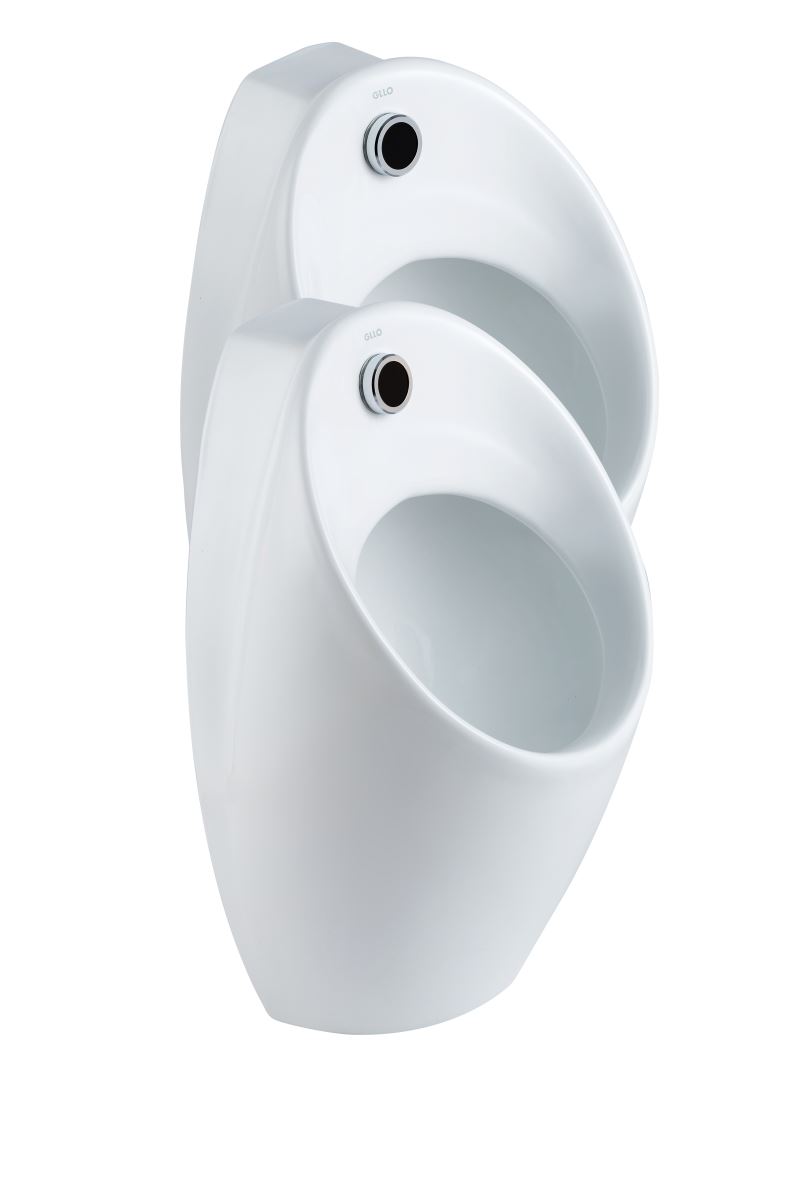

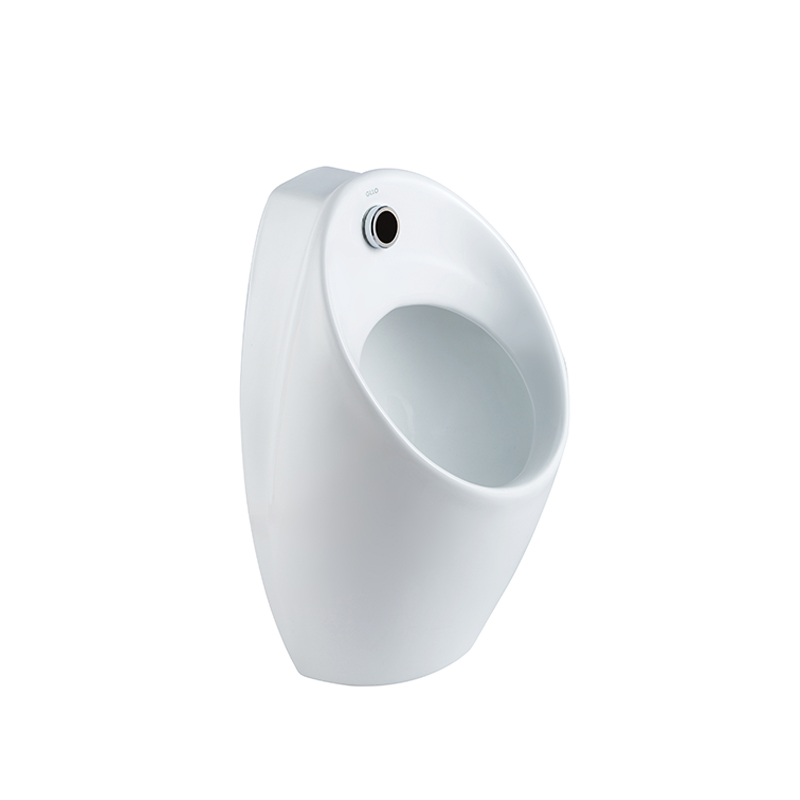

Hanging type sensor urinal, small and light appearance, arc design, with a modern sense.

Features & Functions:

1.Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.

2.Smart Deodorant: When the urinal not used for a long time, it will flush automatically every 24 hours to prevent the trap from drying up and odor reversing.

3.Clean & Hygienic: Self-open and close w/o any touch can effectively avoid cross-infection of bacteria.

4.Water-saving: It can adjust flushing time automatically according to different using frequency, water-saving function significantly.

5.Convenient to maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust water volume and clean the filter.

6.Intelligent Control: The super mini-designed control circuit  & controlled by micro-computer. The detection zone has been configured before ex-factory. Any manual adjustment is needless.

7.Installation Feature: Integrate sensor & flusher with ceramic. Don’t need to pre-embed sensor equipment. Quick & simple installation w/o any special requirement to wall thickness.

8.Water shut off automatically when the power supply abnormal : when the battery power insufficient, the sensor can stop the flushing action automatically.

Specifications:

① Power:DC 6V

② Power consumptionin static:≤0.5mW(DC)
③ Ambient temperature:1 -55℃
④ Suitable water pressure:0.05MPa - 0.7MPa
⑤ Detection zone:60cm(±10%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″

⑦Flow rate: ≥0.12L/s
⑧Standard: CJ/T194

Material :

Panel with sensor: Brass plating

Valve: Nylon + fiberglass

Inlet and Outlet Ways:

Wall Inlet and Wall Drainage

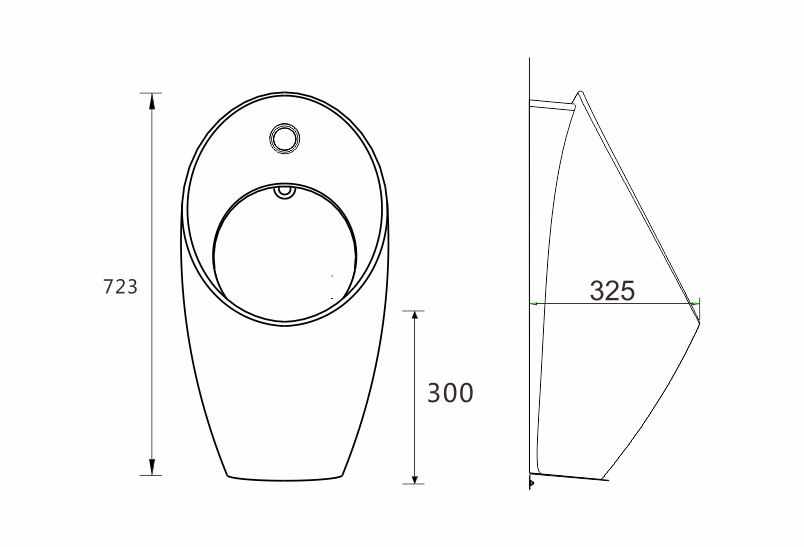

Installation Notes:

1. Backwater integrated ceramic urinal, the end of the inlet pipe is completely flat with the tile surface.

2.The diameter of the inlet and outlet pipe is 12.7 mm ((DN15)G1/2″), and the inlet joint match with G1/2″internal thread.

3.The center of the drainage pipe away from the ground is 445mm,and the outer diameter of the drainage pipe is de50.
