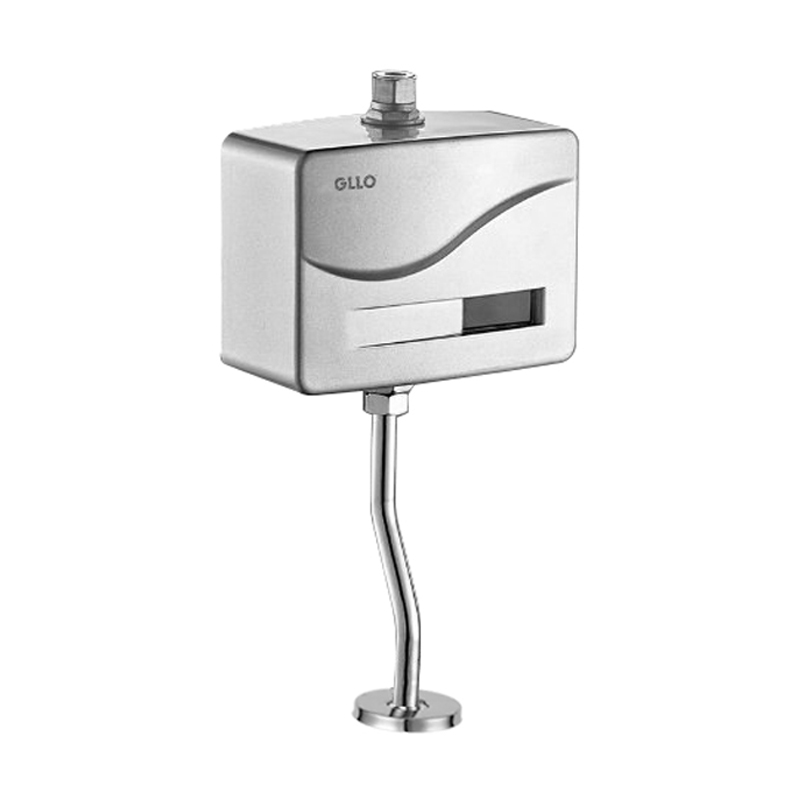

Features & Functions:

① Flush Automatically: After being used, the urinal will flush automatically by the sensor part.

② Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent the trap from drying up and odor reversing.

③ Clean & Hygienic: Self-open and close without any touch metal objects. All the flushing is done by the sensor automatically.Flushing thoroughly,without any peculiar smell.It can effectively avoid cross-infection of bacteria.

④ Water-saving: It can adjust flushing time automatically according to different using frequency, water saving function can be significantly.

⑤ Convenient to maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust water volume and clean filter.

⑥ Intelligent: Its control circuit is super mini-designed & controlled by micro-computer. The detection zone can be adjusted according to the working environment.

⑦ Power Saving: 4pcs AA alkaline batteries can last 2 years based on 300 cycles a day.

Specification:

① Power:D.C 6V

② Static power consumption :4pcs AA alkaline batteries can use around 2 years based on 300 cycles a day.

③ Ambient temperature:1℃ — 55℃

④ Detection zone: 60cm±10%(To 29.7cm×29.7cm standard white board)

⑤ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑥ Suitable water pressure:0.05MPa - 0.6MPa
⑦ Product size：172x173x85mm
⑧ Standard: CJ/T 194 QB2948

Material description:

① Exterior material : Engineering ABS

② Inlet and outlet parts: Brass

③ Pipe latch fitting: 304 stainless steel

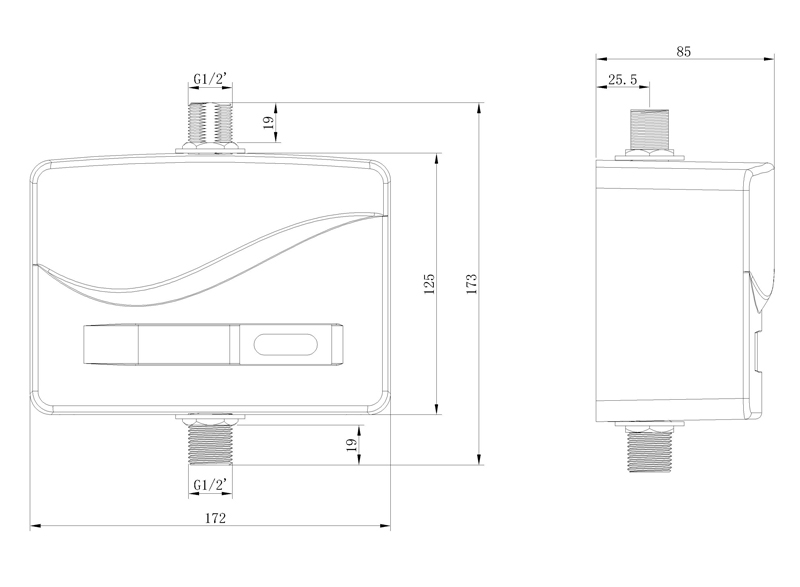

Product size:

Installation size :
