Features & Functions

① WATER SAVING&Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.

② Overtime Protection: It will stop flush automatically after 60s flowing and restore to normal in10s away from the induction zone.This feature setting can effectively avoid the waste of water resources caused by misoperation.

③ Easy to Maintain: Non-professional person can maintain the faucet easily with its built-in filter.

④ Intelligent: Its control circuit is super mini-designed & controlled by micro-computer. The detection zone has been set automatically before ex-factory. Any manual adjustment is needless.

⑤ Power saving: 4pcs AA alkaline batteries can last 2 years based on 300 cycles a day.

⑥ Easy Installation: It is integrative design, no need to install the control box,wiring and other work.

Specification:

① Power:D.C 6V

② Standby power consumption: 4pcs AA alkaline batteries can last 2 years based on 300 cycles a day.

③ Detection zone:main induction 36cm(±10%)(To 29.7cm×29.7cm standard board)

④ Dia.of inlet/outlet pipe:(DN15)G1/2″

⑤ Suitable water pressure:0.05MPa - 0.6MPa

⑥ Induction confirmation time: 0.3s
⑦ Ambient temperature:1℃— 55℃

⑧ Dimension: 203 x 74 x 192mm
⑨ Standard: CJ/T 194

Material description:

① Faucet body: ABS chrome-plating

② Control box: ABS

③ Inlet and outlet parts: Brass

④ Pipe latch fitting: 304 stainless steel

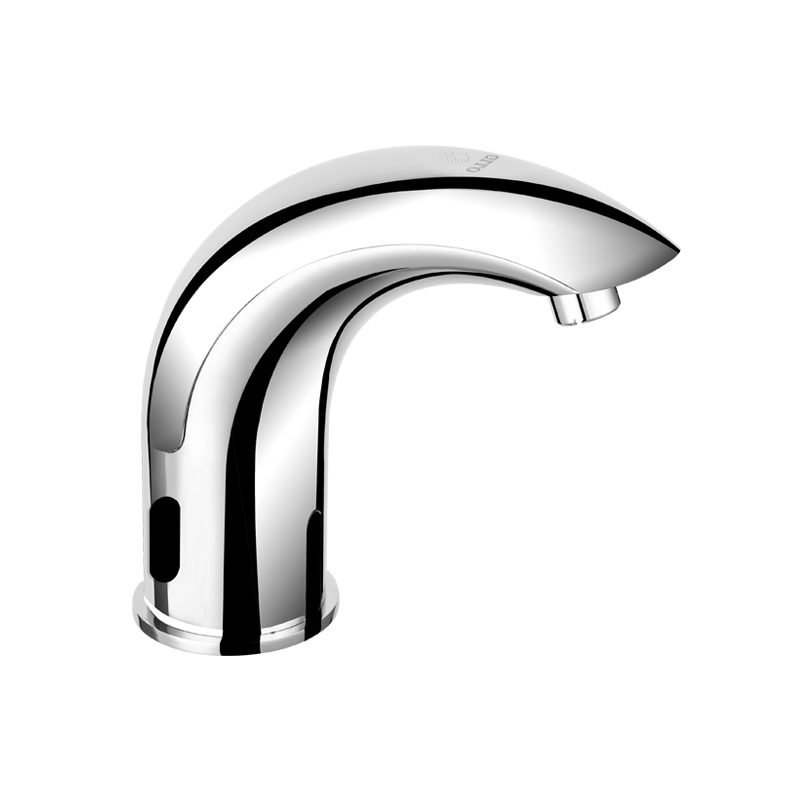

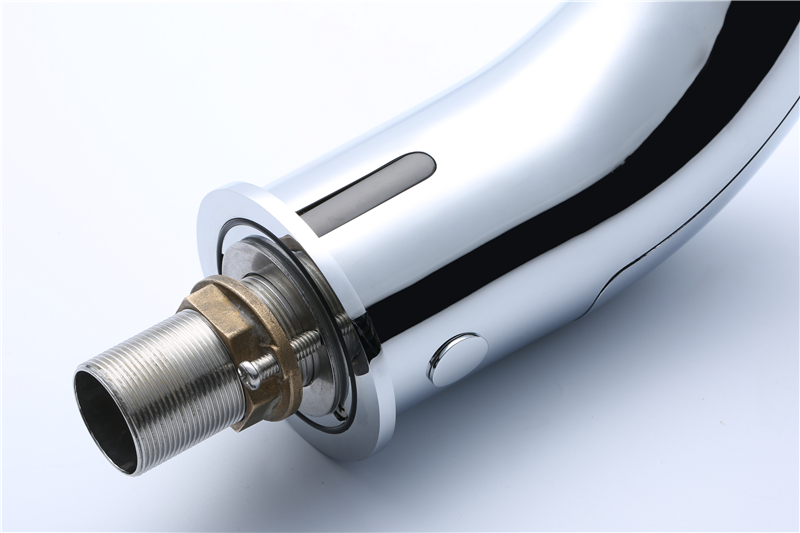

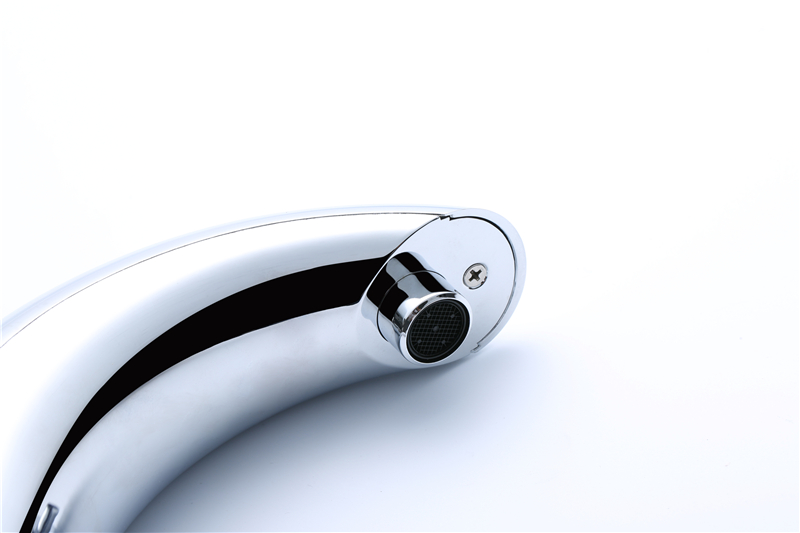

Product display:

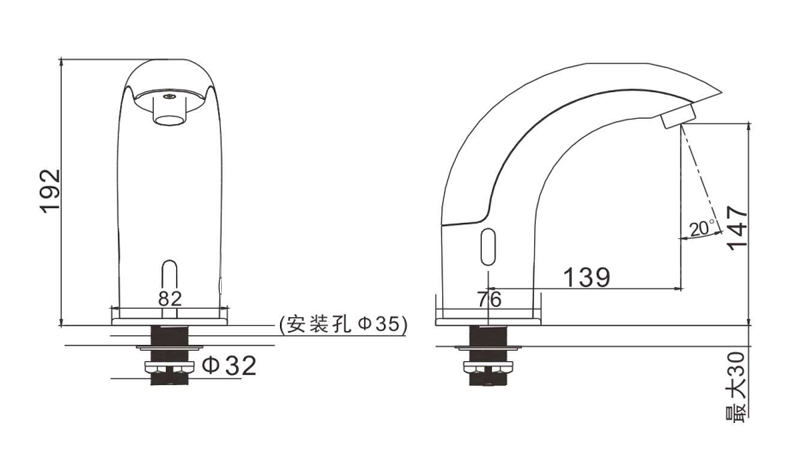

Product size:

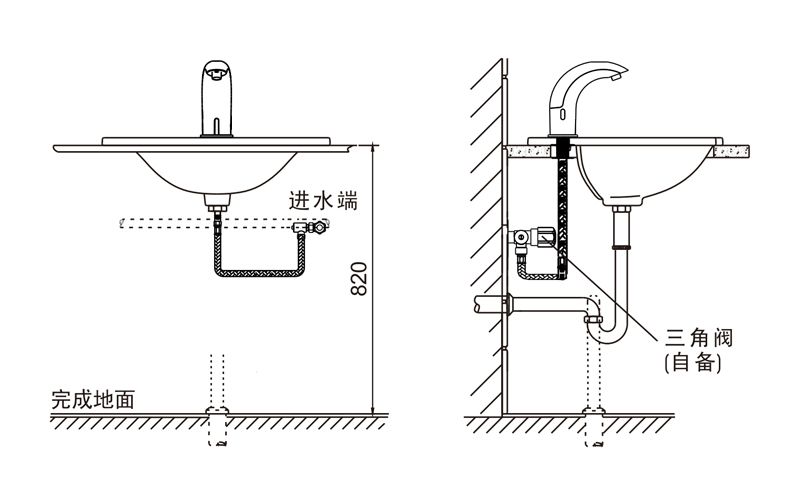

Installation size :
