Functions and features:

① Panel Features: Black tempered glass panel with fashion round shape.it could protect the sensor eye from being scratched and scalded.The built-in blue LED lighting when getting into the induction zone which presents the sense of modern science and technology.

② Flush automatically:When people use the urinal, it will be flush automatically by the sensor part.

③ Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent the trap from drying up and odor reversing.

④ Clean & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.It flushes thoroughly with no odor.

⑤ Water-saving: It can adjust flushing time automatically according to different using frequency, water saving function can be significantly.

⑥ Intelligent: Its control circuit is super mini-designed & controlled by micro-computer. The detection zone has been adjusted automatically before ex-factory according to the working environment. Any manual adjustment is needless.

⑦ Convenient to Maintain: With built-in flow rate controller & filter, it is easy to maintain and adjust the water volume.

⑧ Power supply:DC. 6V ~ AC.220V (according to the different requirements: DC. 6V battery or AC. 220V power supply)

⑨ Power saving: Static power consumption≤0.5mW(D.C ).4pcs AA alkaline batteries can last 2 years based on 300 cycles a day.

Specification:

① Power:D.C 6V / A.C.220V

② Power consumption static:≤0.5mW(D.C)/  ≤0.6w(A.C.)

③ Ambient temperature:1— 55℃

④ Detection zone:70cm±10%(To 29.7cm×29.7cm standard white board)

⑤ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑥ Suitable water pressure:0.05MPa - 0.6MPa
⑦ Panel size: 125x125mm; embedded case size: 200x125x65mm

⑧ Standard: CJ/T 194-2014  QB2948-2008

Material description:

① Panel: Toughened glass

② Control box: ABS

③ Inlet and outlet parts: Brass

④ Pipe latch fitting: 304 stainless steel

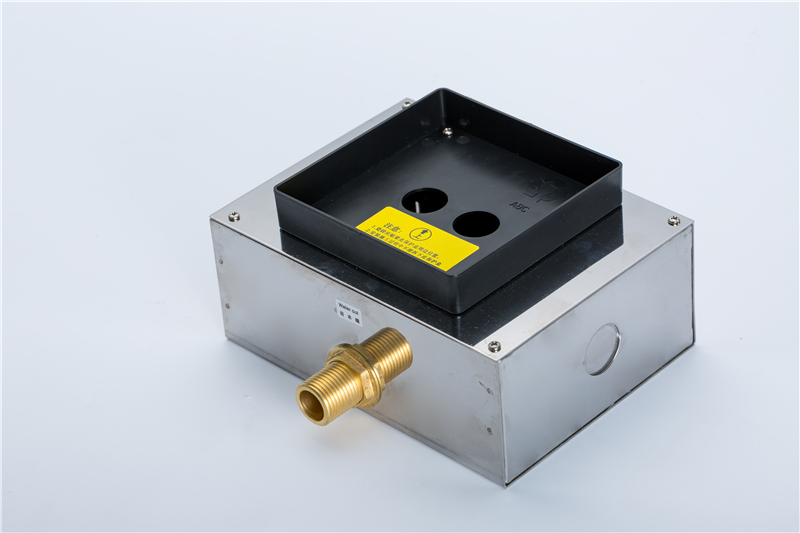

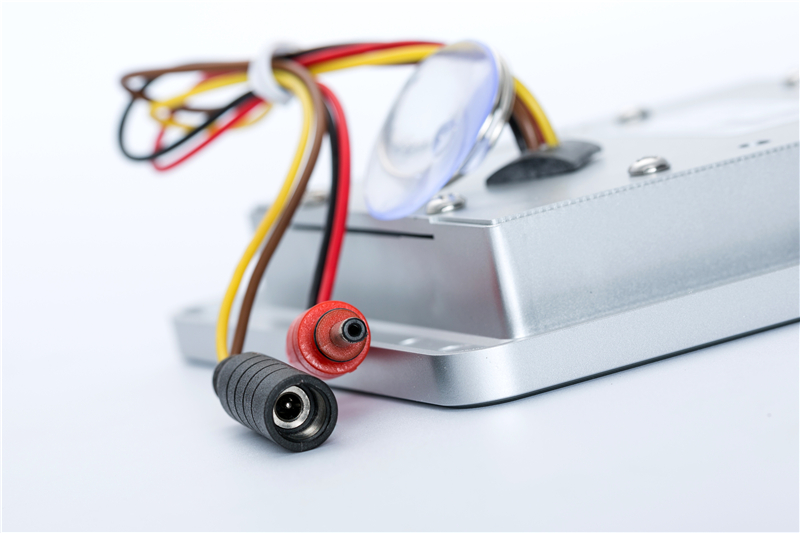

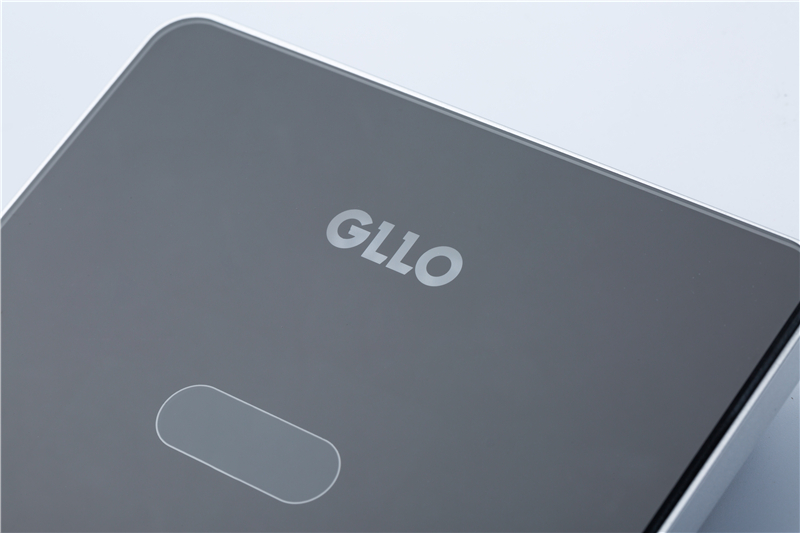

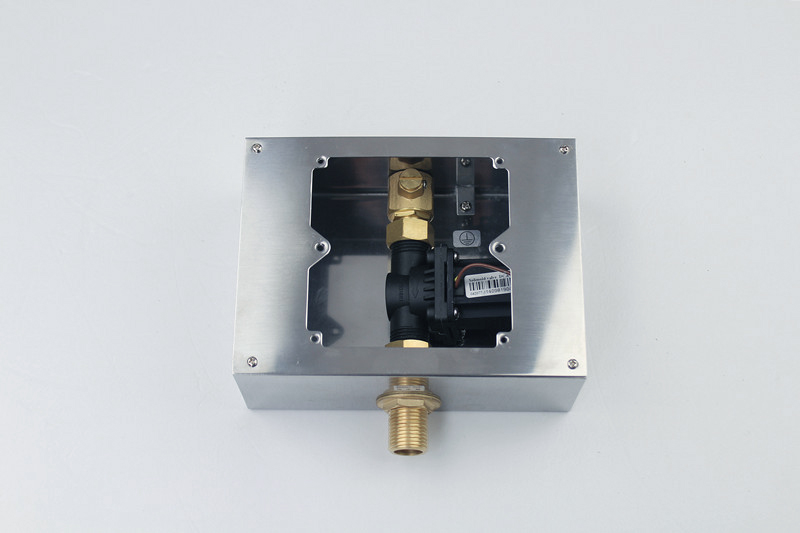

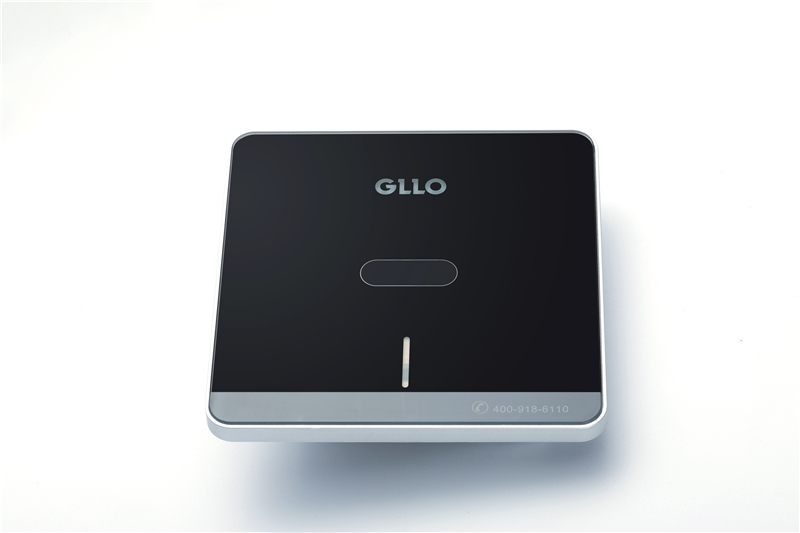

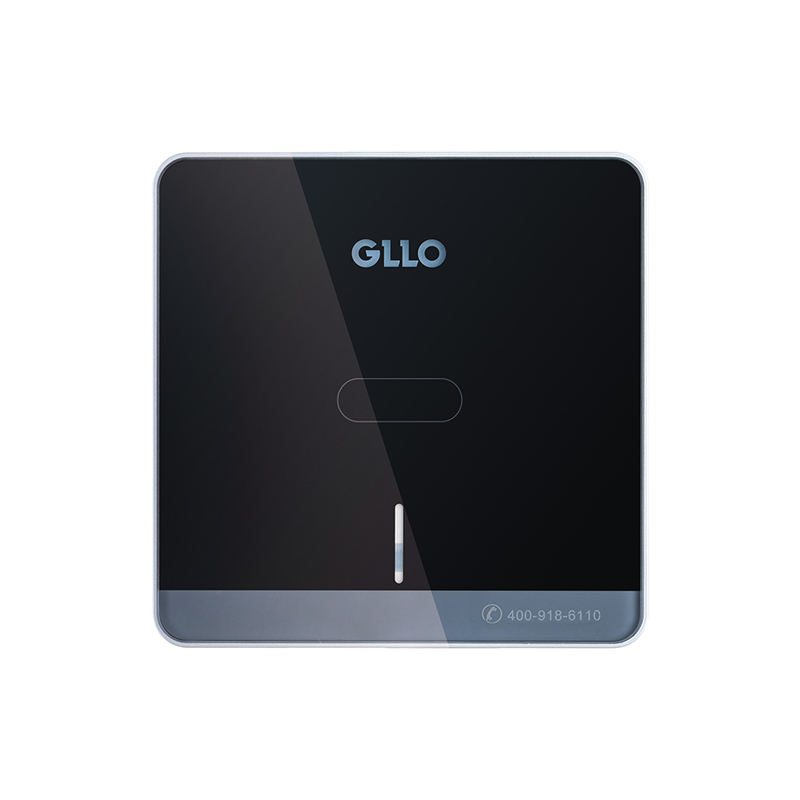

Product display

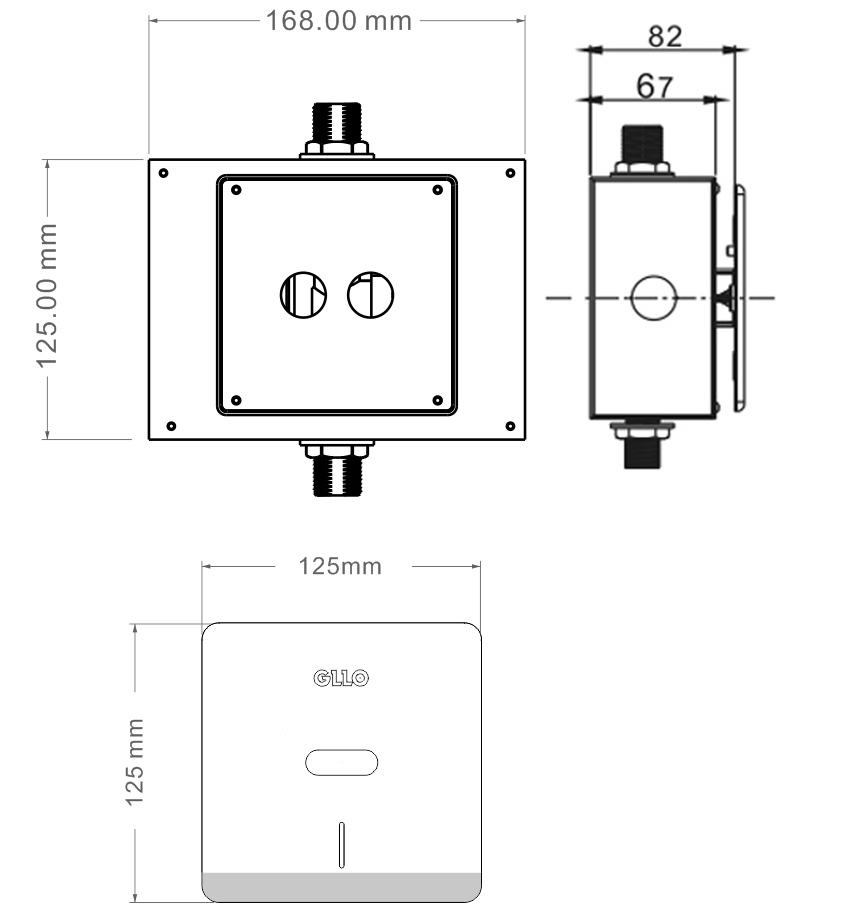

Product size

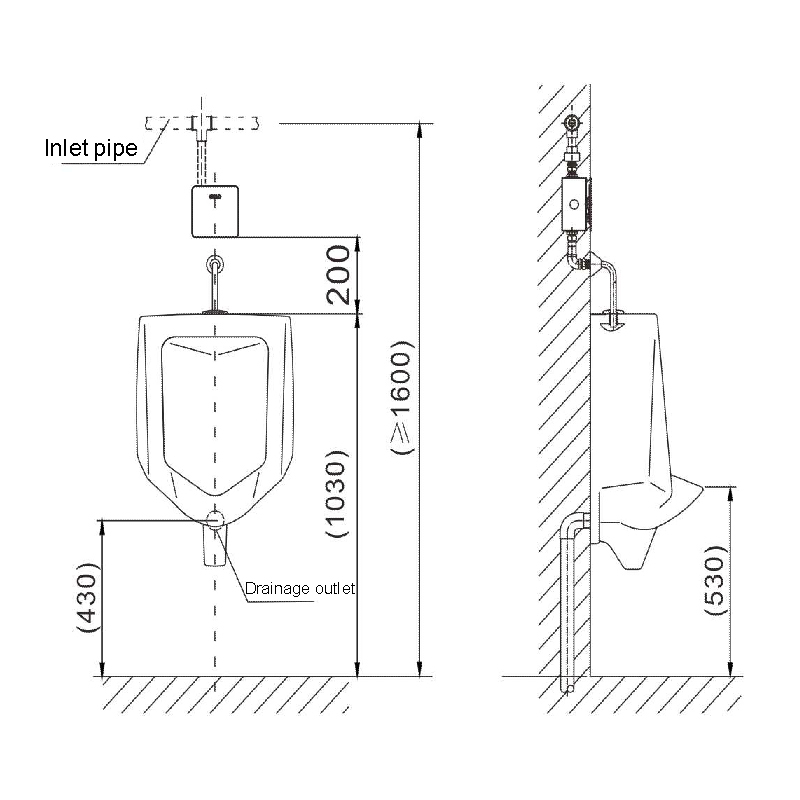

Installation size
