Functions and features:

① Panel Features: Black tempered glass panel with fashion round shape.it could protect the sensor eye from being scratched and scalded.The built-in blue LED lighting when getting into the induction zone which presents the sense of modern science and technology.

② Clean & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.It flushes thoroughly with no odor.

③ Power supply optional:According to different requirements,select AC or DC  power supply mode.

④ Power saving: Static power consumption≤0.5mW(D.C )/≤3W.

⑤ Convenient maintenance: the internal water filtering device, stable and reliable operation, convenient maintenance.

⑥ Smart Deodorant: When the toilet is not used for a long time, it will flush automatically every 12 hours to prevent the trap from drying up and odor reversing.

Specification:

① Power:D.C 6V / A.C.220V

② Power consumption static:≤0.5mW(D.C )/≤2W(～)
③ Ambient temperature:1 — 55℃

④ Detection zone:67cm±10%（29.7cm×29.7cm）

⑤ Dia.of inlet/outlet pipe:(DN25)G1″
⑥ Suitable water pressure:0.1MPa - 0.6MPa
⑦ Panel size: 170x220mm

⑧ Standard: CJ/T 194

Material description:

① Panel: Toughened glass

② Control box: ABS

③ Inlet and outlet parts: Brass

④ Pipe latch fitting: 304 stainless steel

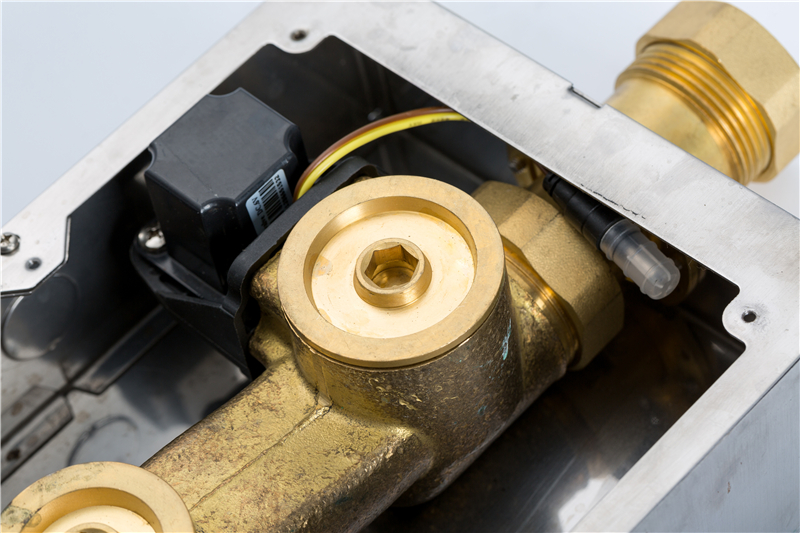

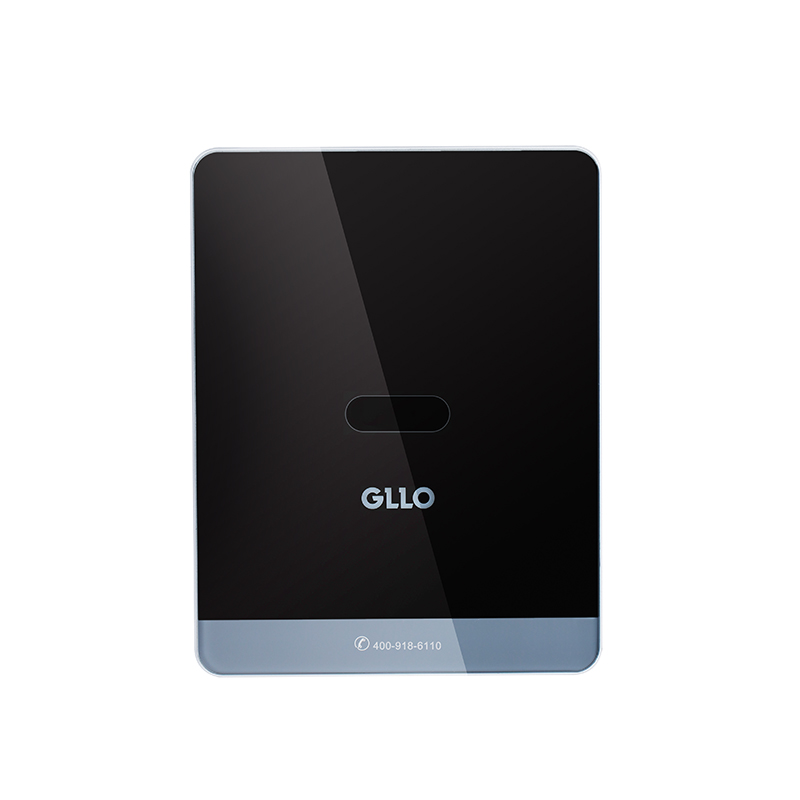

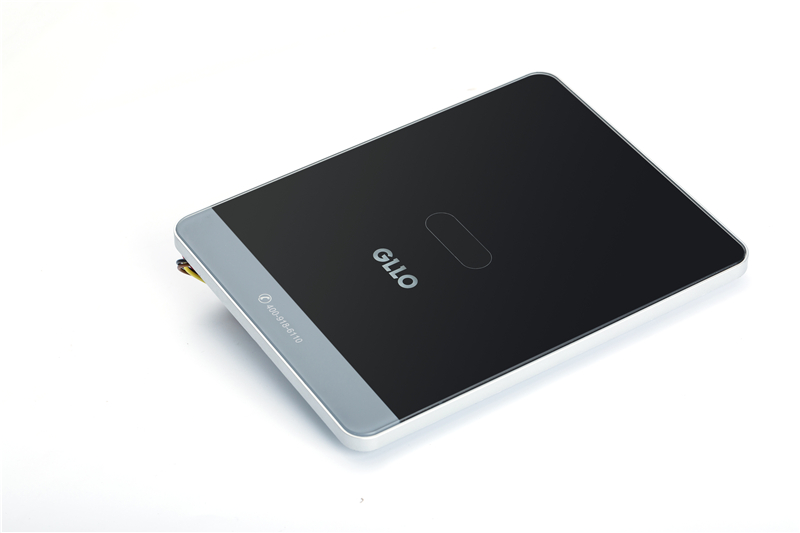

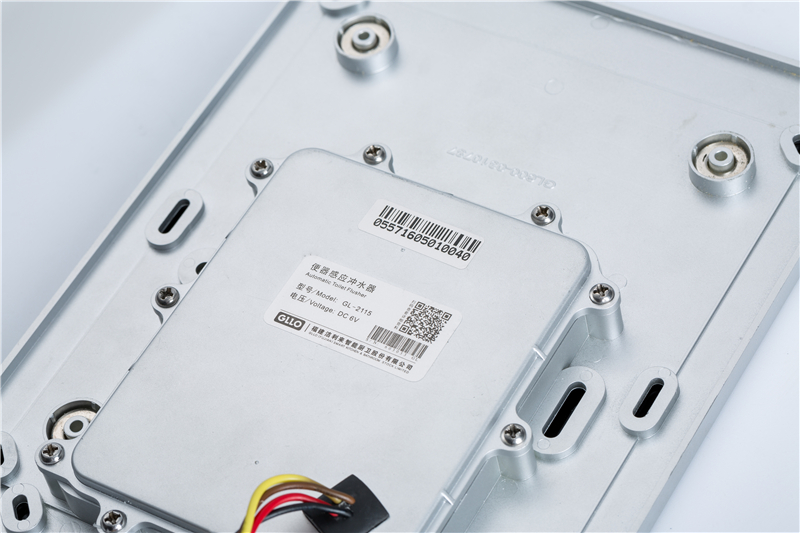

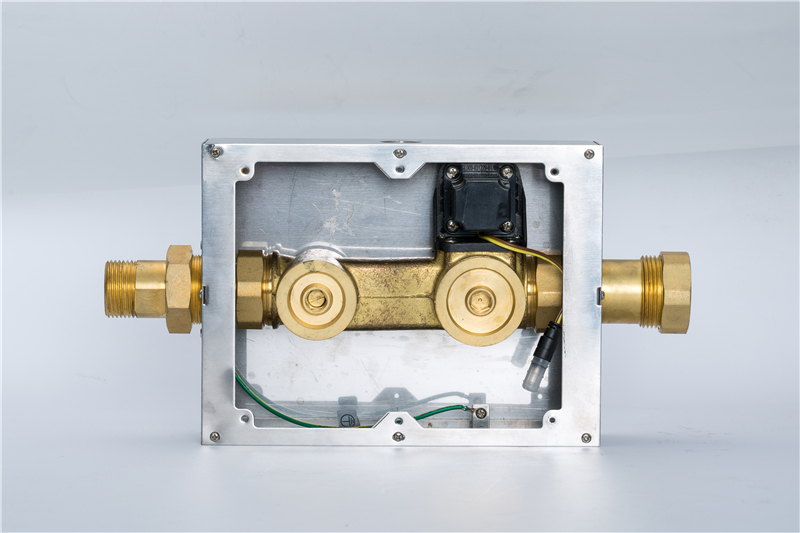

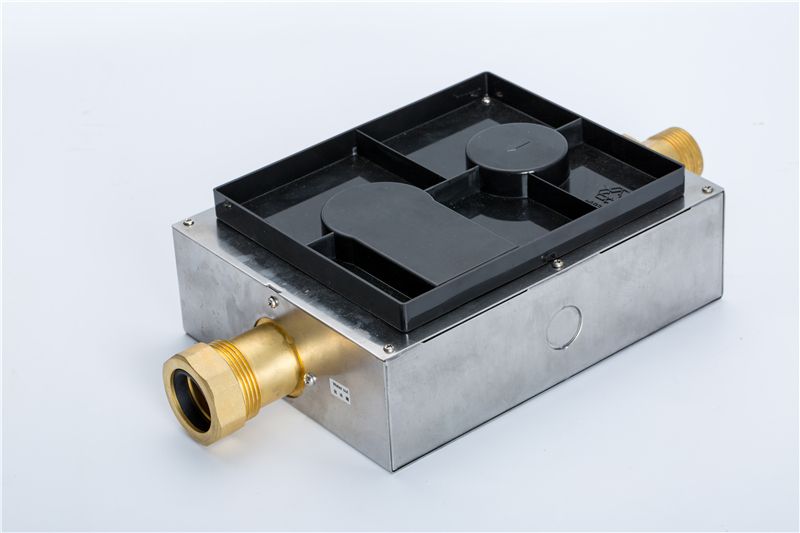

Product display

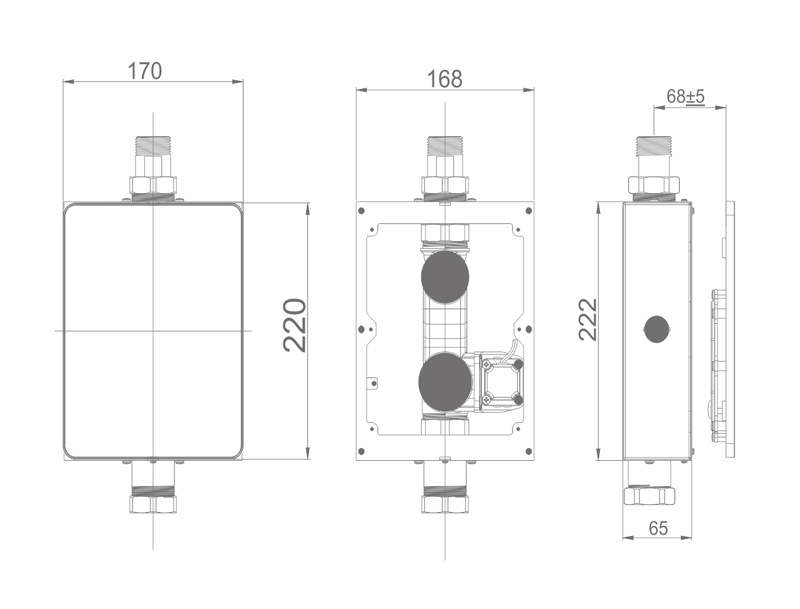

Product size

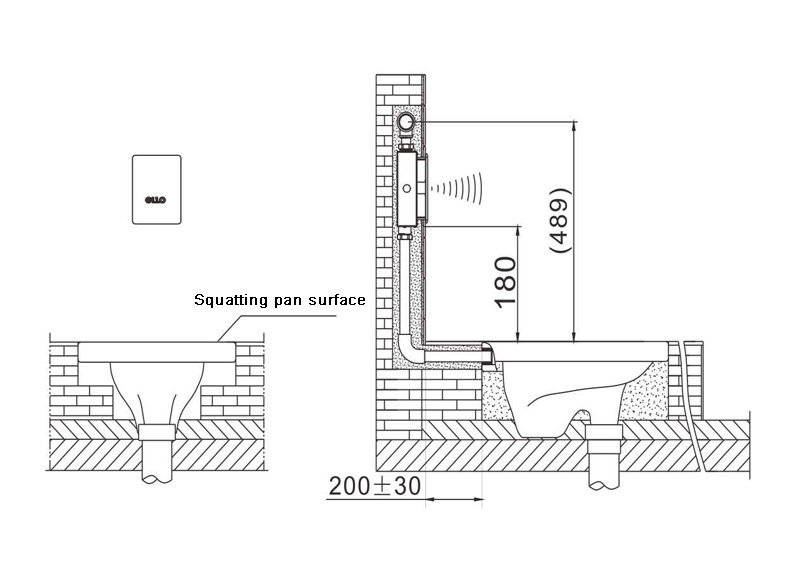

Installation size
