Features & Functions

① Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.

② Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 24 hours to prevent the trap from drying up and odor reversing.

③ Clean & Hygienic: Self-open and close without any touch can effectively avoid cross-infection of bacteria.

④ Water-saving: It can adjust flushing time automatically according to different using frequency, water saving function can be significantly.

⑤ Convenient to Maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust water volume and clean filter.

⑥ Intelligent: Its control circuit is super mini-designed & controlled by micro-computer. The detection zone has been adjusted automatically according to the working environment. Any manual adjustment is needless.

⑦ Installing features: The sensor and flushing device is integrated with ceramic, without pre buried induction device, quick installation, simple and no special requirements for the  wall thickness .

⑧ Shut off water automatically when power supply is abnormal:The battery power is insufficient, sensor can automatically stop the flushing

⑨ Its artful ,light, small size and elegant appearance meet the modern trend.

Specification:

① Power:D.C 6V / A.C.220V

② Power consumptionin static:≤0.5mW(d.c)
③ Ambient temperature:0 — 55℃

④ Detection zone:30-40cm(To 29.7cm×29.7cm standard white board)

⑤ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑥ Suitable water pressure:0.05MPa - 0.6MPa
⑦ Flow rate：≥0.25L/s

⑧ Standard: CJ/T194-2004

Material description:

① Panel: 304 stainless steel

② Control box: ABS

③ Inlet and outlet parts: Brass

④ Pipe latch fitting: 304 stainless steel

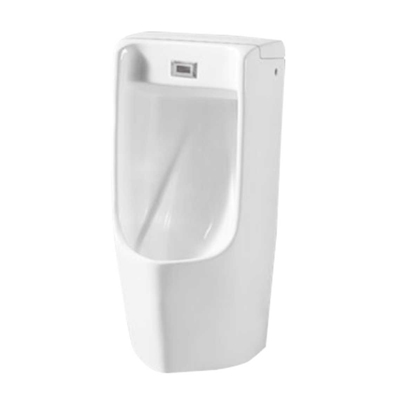

Product display:

800 pixels wide.

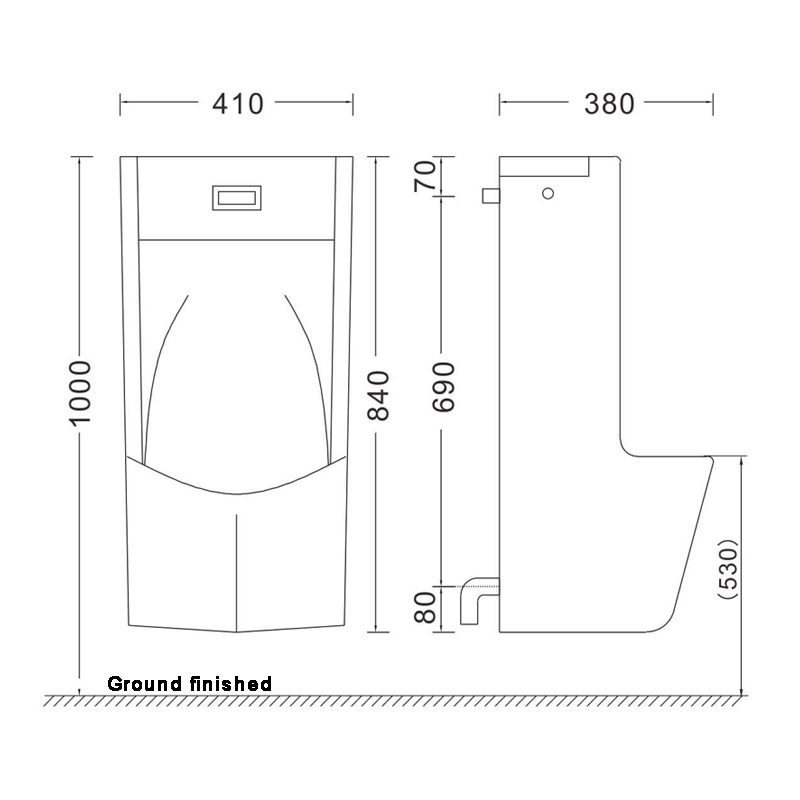

Product size chart:
