Features & Functions:

① LED lighting:The toplight is blue when non inductive state, Induction state into green.(GL-S2871 for DC products without this feature)

② Easy to Install: It is integrative design, no need to install the control box.

③ Easy to Maintain: Non-professional person can maintain the faucet easily with its built-in filter.

④ Self-adjusting Induction Distance: The sensor eye starts to self-adjust the induction distance and the indicator will flash on for 3s when the power is on. (Note: no object is allowed to move in front of the sensor eye.)

⑤ Power Saving: For the model of GL-S2871, 4pcs AA alkaline batteries can last 2 years based on 300 cycles a day.

⑥ Water Saving & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.

⑦ Overtime Protection: It will stop flush automatically after 60s flowing and restore to normal after 10s no induction continuously.This feature setting can effectively avoid the waste of water resources caused by misoperation.

⑧ Battery replacement tip: When batteries run out, the indicator will flash to remind you to change new batteries.

Specification:

① Power:D.C 6V / A.C.220V

② Power consumption static:≤0.5mW(D.C)  GL-S2871(DC) /≤0.6w(A.C.) GL-S0861(AC)
③ Ambient temperature:0 — 55℃

④ Detection zone:5-20cm(To 29.7cm×29.7cm standard white board)

⑤ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑥ Suitable water pressure:0.05MPa - 0.7MPa
⑦ Body size: 50x111x178mm

⑧ Standard: CJ/T 194-2004

Material description:

① Faucet body: Brass chrome-plating

② Control box: ABS

③ Inlet and outlet parts: Brass

④ Pipe latch fitting: 304 stainless steel

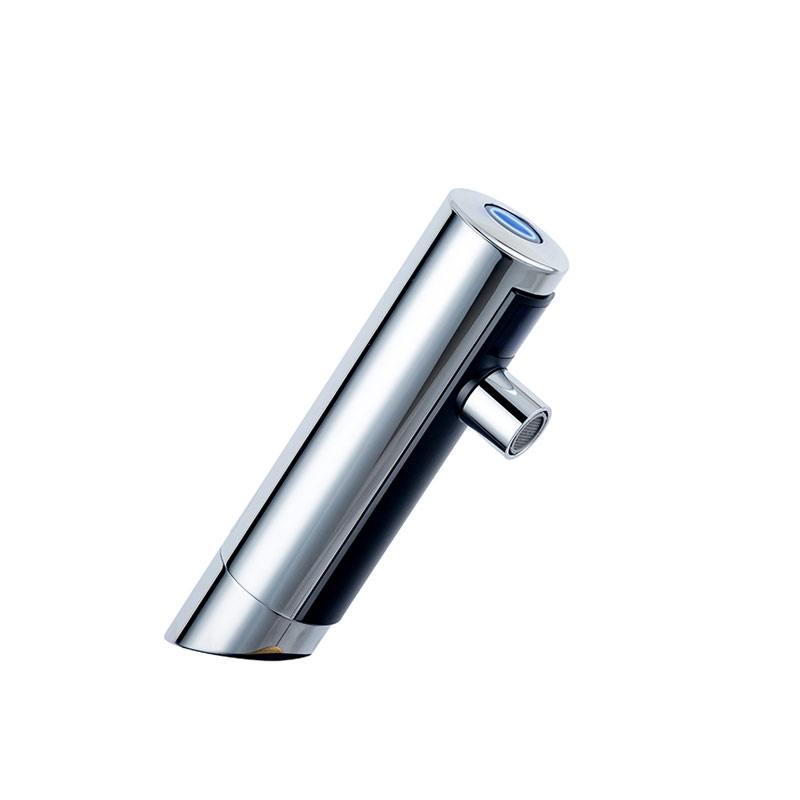

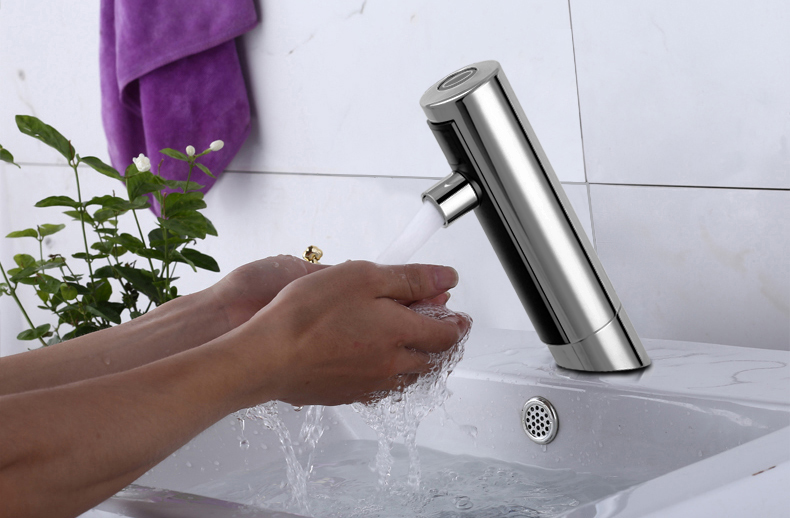

Product display:

800 pixels wide.

Product size chart:
