Install Instructions:

Specification:

① Power:ac 220v

② Power consumptionin static:≤0.6w(a.c.)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:26cm±2cm(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Standard: CJ/T194-2004

Features & Functions:

Special Design: Water-drop design of the faucet body is concise and elegant, suitable for the high-end places.

Higher Space Utilization: Ceiling-mounted installation saves much space, it can be installed in the center of the hall.

Colorful LED Lights: The light flashes in an energized state. It has random changes if the faucet is not inducted and the color of the light changes instantly if the faucet is inducted.

Water Saving & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.

Overtime Protection: It will stop flush automatically after 60s flowing and restore to normal in 10s. This feature set is effective to avoid the waste of water resources caused by misoperation.

Easy to Maintain: non-professional person could maintain the faucet easily with its built-in filter.

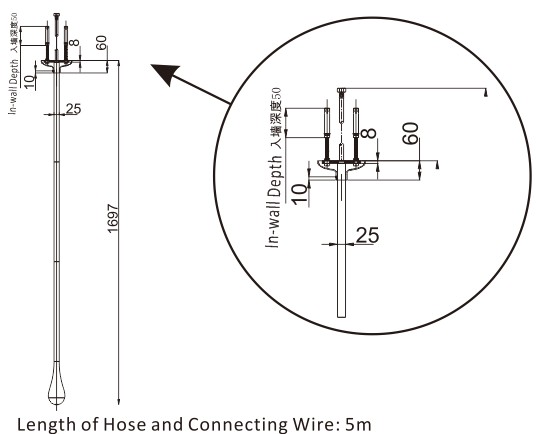

Adjustable in Height: there is three -segment connecting pipes for the faucet ( 500mm per segment), which can be used according to different requirement.

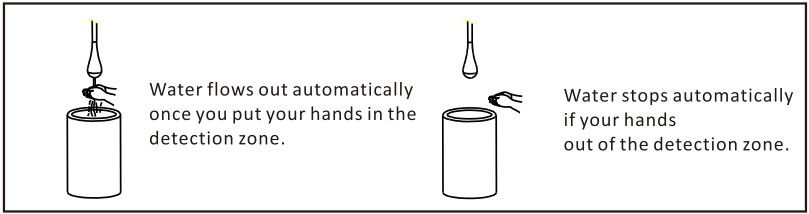

Use Instructions:
