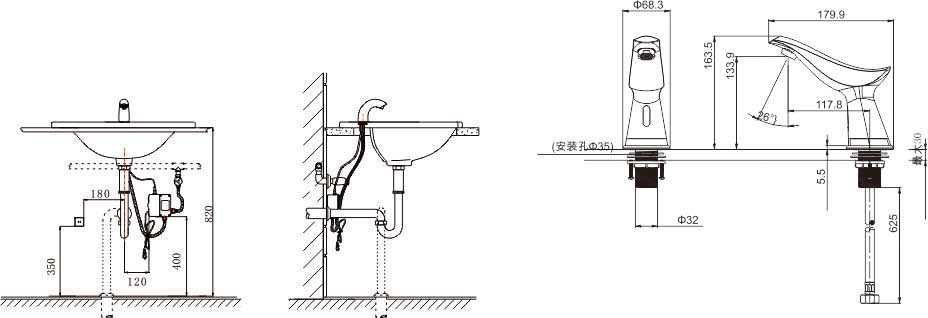

Install Instructions:

Specification:

① Power:d.c 6V / ac 220v

② Power consumptionin static:≤0.5mW(d.c)  /≤0.6w(a.c.)
③ Ambient temperature:0 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:33cm（±15%）(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ With 4 kinds color to choose

⑧Standard: CJ/T194-2004

Features & Functions:

Water Saving & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.

Overtime Protection: It will stop flush automatically after 60s flowing and restore to normal in 10s. This feature set is effective to avoid the waste of water resources caused by misoperation.

Easy to Maintain: non-professional person could maintain the faucet easily with its built-in filter.

Power Saving: 4pcs AA alkaline batteries can last 2 years based on 300 cycles a day.

Power Optional: The product could work with AC220v or DC6v according to different needs.( AC220V or DC6v is for option.)

Power Insufficient Reminder: When batteries run out, the indicator will flash to remind you to change new batteries.

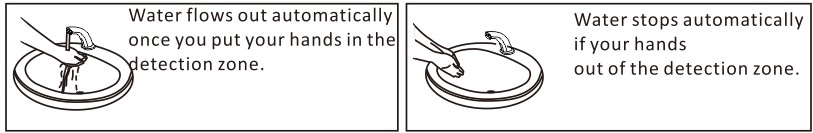

Use Instructions:
