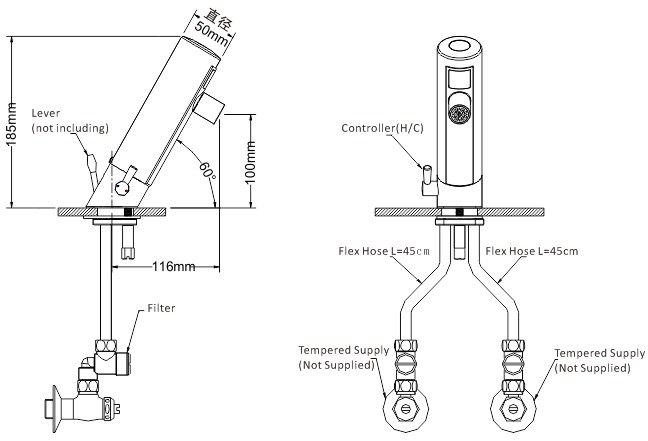

Install Instructions:

Specification:

① Power:d.c 6V / ac 220v

② Power consumptionin static:≤0.5mW(d.c)  /≤0.6w(a.c.)
③ Ambient temperature:0 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:5-20cm(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ With water temperature mixer

⑧Standard: CJ/T194-2004

Features & Functions:

Dual Infrared Sensor: There are two sensors: upper sensor & lower sensor. The lower sensor will flush automatically when the user’s hands enter the sensing range; the upper sensor will flush automatically at first induction and will stop at the second induction. This feature is suitable for collecting water or making the water being on for a while.

Temp. Adjustable: Water temperature could be adjusted with the regulating handle.

Easy to Install: It is integrative design, no need to install the control box.

Easy to Maintain: Non-professional person can maintain the faucet easily with its built-in filter.

Sensing Distance Self-adjusting: The sensor starts to self-adjust the sensing distance and the indicator will flash on for 3s when the power is on. (Note: no object is allowed to move in front of the sensor eye.)

Built-in Check Valve: Set check valve in both cold and hot water pipe to avoid cold & hot water swapping.

Power Saving: 4pcs AA alkaline batteries can last 2 years based on 300 cycles a day.

Water Saving & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.

Overtime Protection: It will stop flush automatically after 60s f lowing ( 180s for the upper sensor) and restore to normal in 10s. This feature set is effective to avoid the waste of water resources caused by misoperation.

Power Insufficient Reminder: When batteries run out, the indicator will flash to remind you to change new batteries.

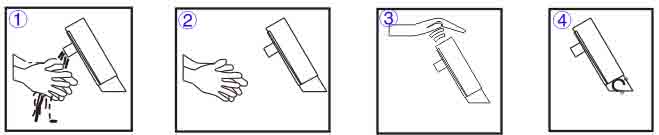

Use Instructions:

①Water flows out automatically once you put your hands in the detection zone.

②Water stops automaitcally once you draw your hands back.

③Water will flow on with activating the sensor(facing up); water stop automatically at the 2nd activate( facing up)

④Adjust the water temperature as picture shown.
