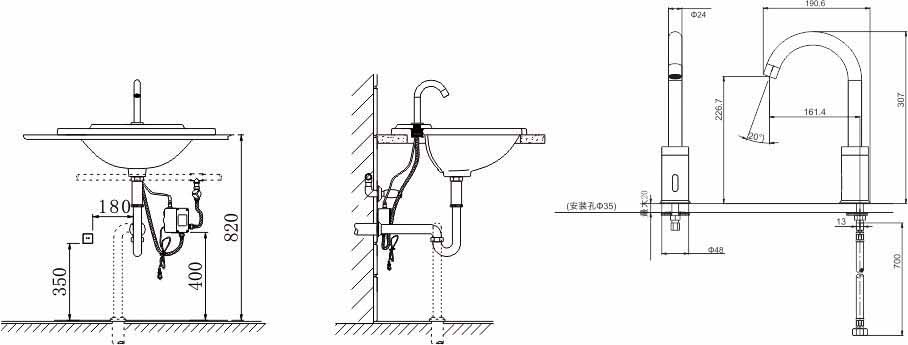

Install Instructions:

Specification:

① Power:d.c 6V / a.c 220v

② Static power consumption:≤0.6w(a.c.)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:33cm（±10%）(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Dimensions:190.6x307xφ48mm

⑧Standard: CJ/T194

Features & Functions:

Rotatable Water Lever: The taller faucet with 360 degree rotatable water lever is suitable for hand & arm washing and kitchen sink.

Water Saving & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.

Overtime Protection: It will stop flush automatically after 60s f lowing and restore to the normal in 10s.This feature set is effective to avoid the waste of water resources caused by misoperation.

Easy to Maintain: Non-professional person can maintain the faucet easily with its built-in filter.

Power Saving: 4pcs AA alkaline batteries can last 2 years based on 300 cycles a day.

Power Optional: The product could work with AC220v or DC6v according to different need.( AC220V or DC6v is for option.)

Power Insufficient Reminder: When batteries run out, the indicator will flash to remind you to change new batteries.

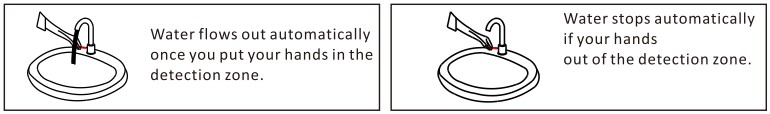

Use Instructions:
