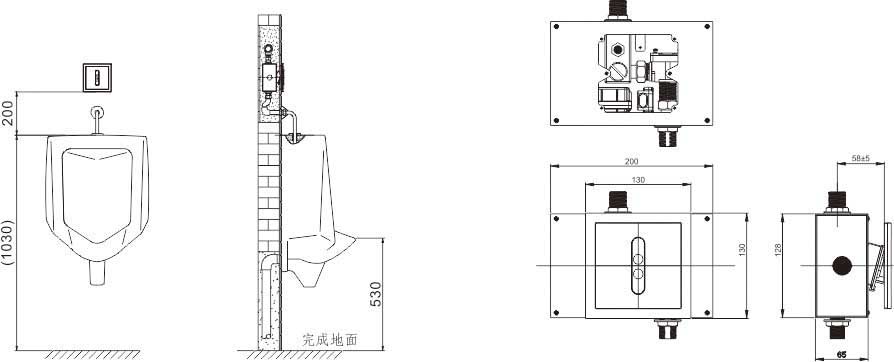

Install Instructions:

Specification:

① Power:d.c 6V/ a.c.220v

② Power consumptionin static: ≤0.5mW(dc), ≤0.6W（AC)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa（Best Water Pressure: 0.1-0.3MPa）
⑤ Detection zone:70cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″

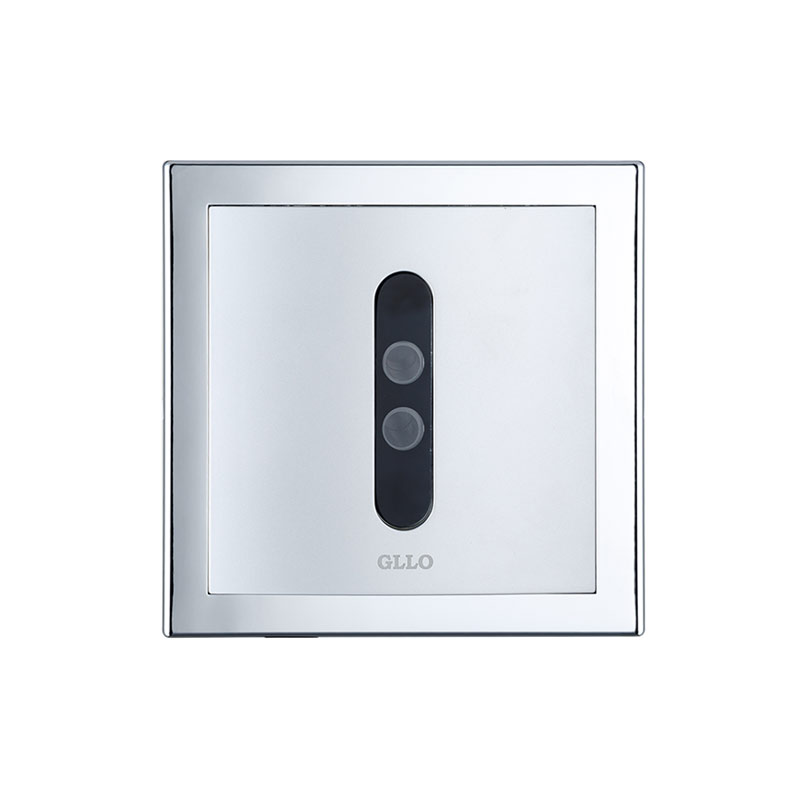

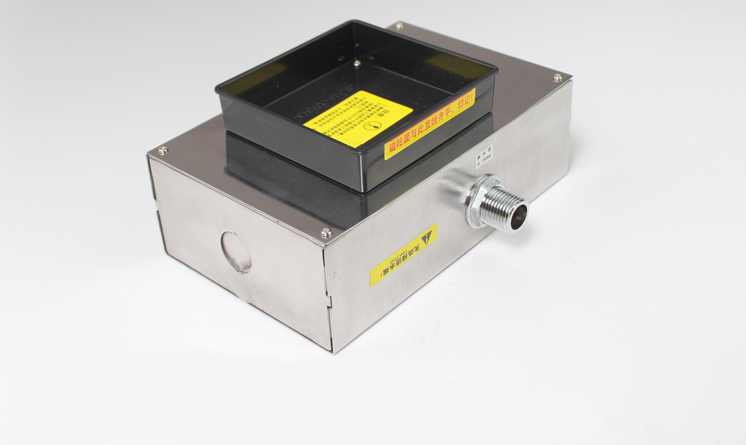

⑦ Dimensions: Pane：130mm×130mm；Embedded Case：200mm×128mm×58mm

⑧Standard: CJ/T194-2004

Features & Functions:

Flush Automatically: After being used, the urinal will flush by the sensor flusher automatically.

Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent the trap from drying up and odor reversing.

Clean & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.It washes cleanly with no odor.

Water-saving: It can adjust flushing time automatically according to different using frequency, saving water effectively.

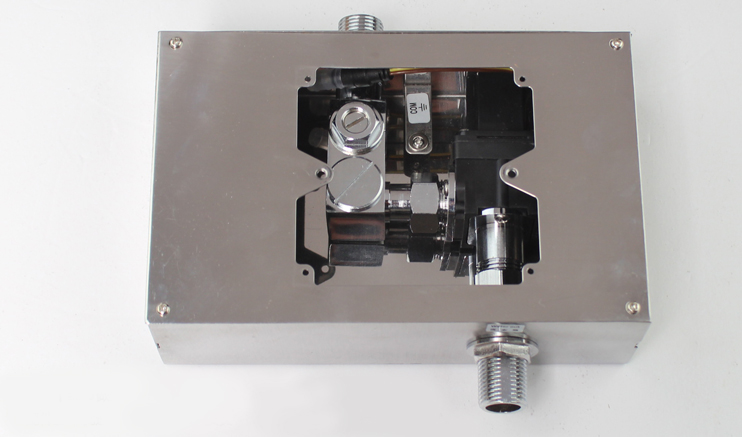

Convenient to Maintain: With built-in flow rate controller & filter, it is easy to maintain and adjust the water volume.

Power Optional: the product could work with AC220v or DC6v according to different need.( AC220V or DC6v is for option.)

Power Insufficient Reminder: When batteries run out, the indicator will flash to remind you to change new batteries.

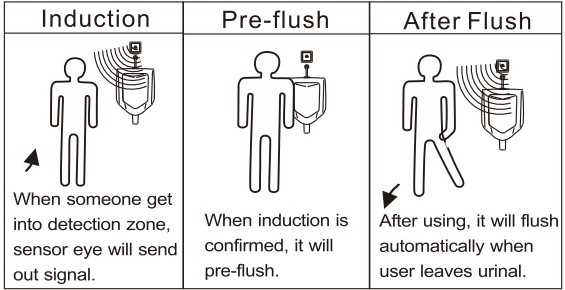

Use Instructions:
