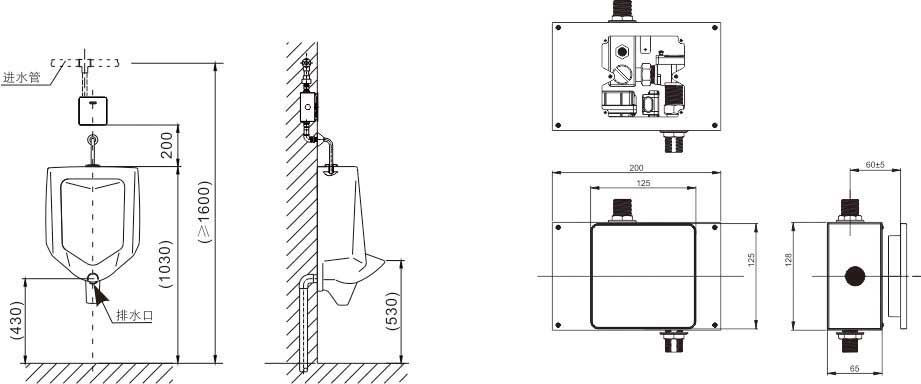

Install Instructions:

Specification:

① Power: a.c.220v

② Power consumptionin static: ≤0.6W（AC)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa（Best Water Pressure: 0.1-0.3MPa）
⑤ Detection zone:60cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″

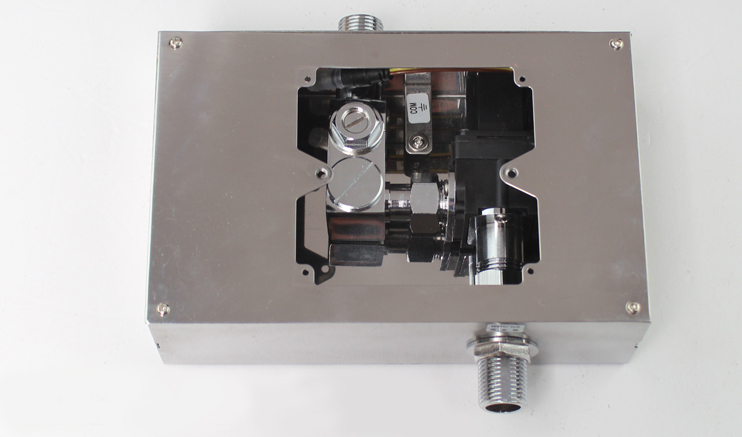

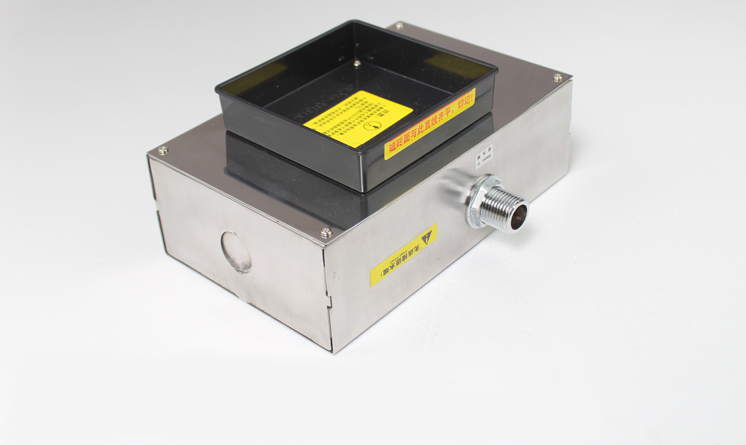

⑦ Dimensions: Pane：125mm×125mm；Embedded Case：200mm×128mm×65mm

⑧Standard: CJ/T194-2004

Features & Functions:

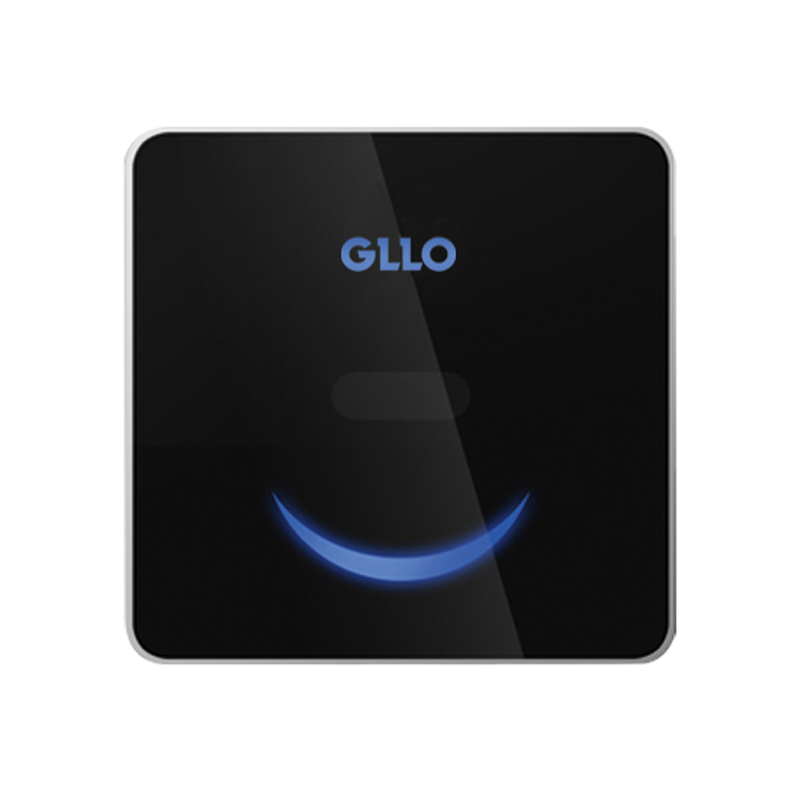

Panel Features: The black toughened glass panel is imitated the shape of IPHONE, it could protect the sensor eye from being scratched and scalded. The built-in LED blue light presents its modern science and technology to the design.

Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.

Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent the trap from drying up and odor reversing.

Clean & Hygienic:

Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.It washes cleanly with no odor.

Water-saving: It can adjust flushing time automatically according to different using frequency, saving water effectively.

Convenient to Maintain: With built-in flow controller & filter, it is easy to maintain and adjust the water volume.

Power Supply: It supplies with AC 220v.

Power Saving: Power consumption is less than 0.3W per month for a machine.

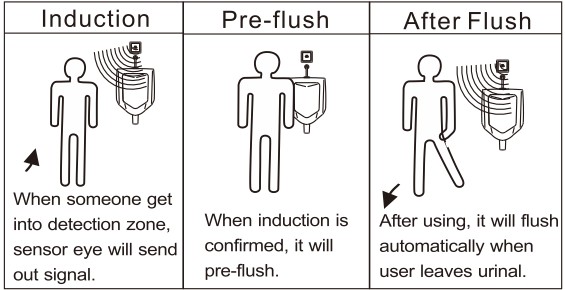

Use Instructions:
