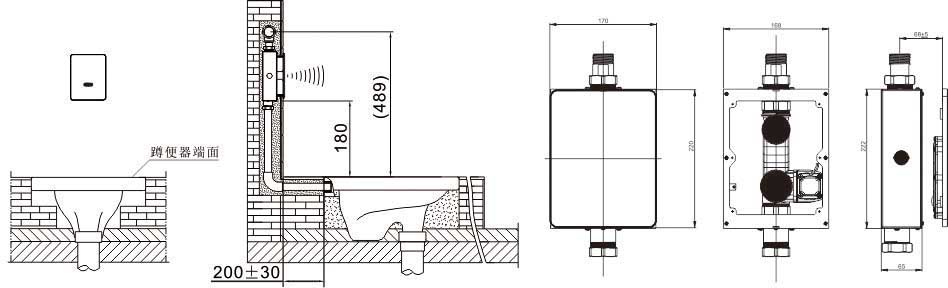

Install Instructions：

Specifications:

① Power:a.c.220v

② Power consumptionin static:  ≤0.3W（AC)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.1MPa - 0.6MPa（Best water pressure is between 0.2-0.4Mpa）
⑤ Detection zone:67cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:DN25(G1")，Dia of outlet Pipe: De32

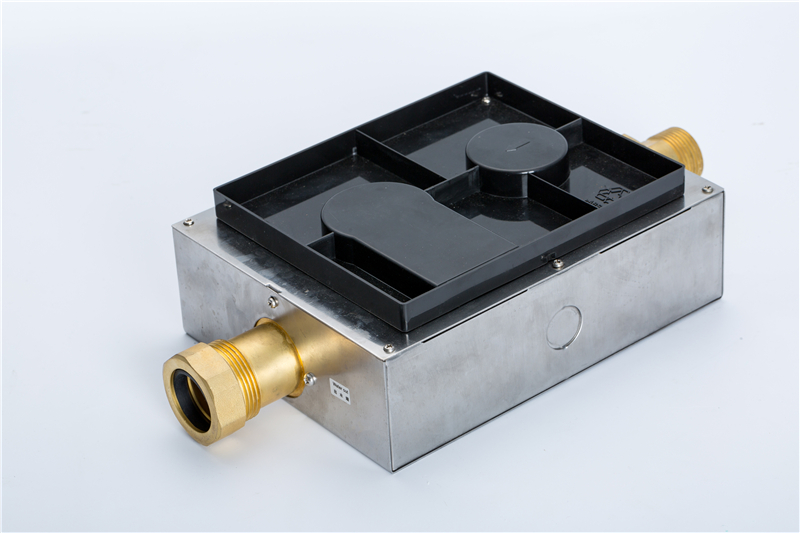

⑦ Dimensions: Panel:220X170mm   Embedded Case:222X168X68mm

⑧Max. Transient Flow/set: ≥1.2L/s

⑨Standard: CJ/T194-2004

Features & Functions:

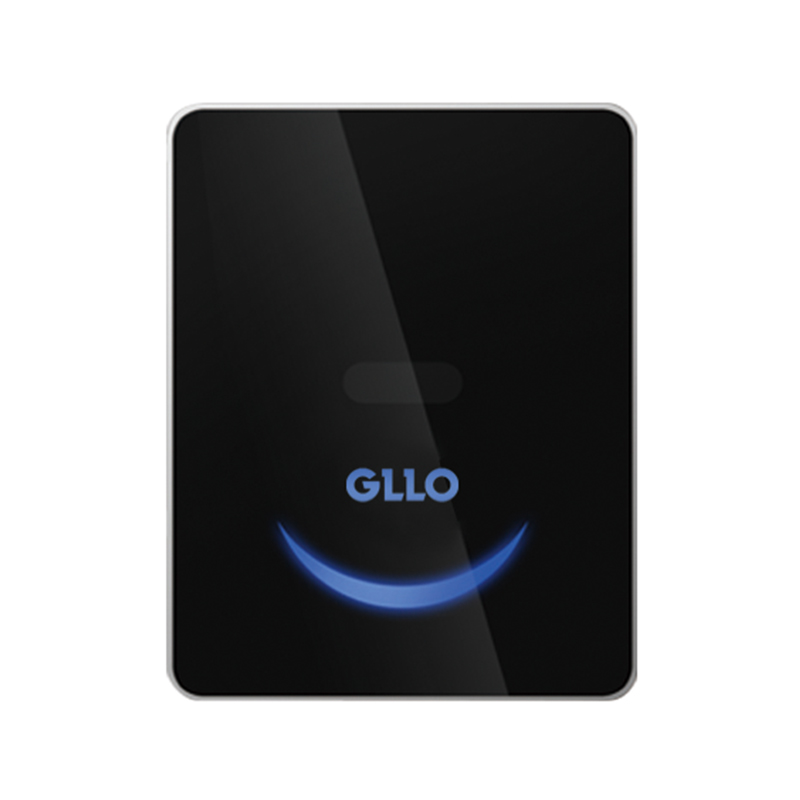

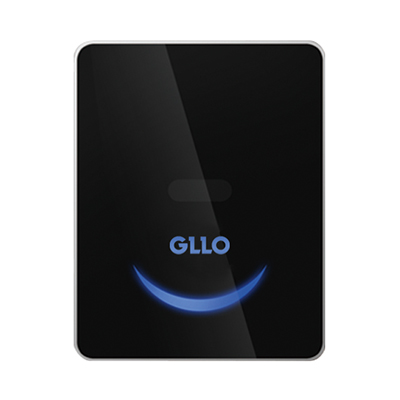

Panel Features: The black toughened glass panel is imitated the shape of IPHONE, it could protect the sensor eye from being scratched and scalded. The built-in LED blue light presents it modern science and technology to the design.

Clean & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.It washes cleanly with no odor.

Power Supply: It supplies with AC 220v.

Power Saving: Power consumption is less than 0.3W per month for a machine.

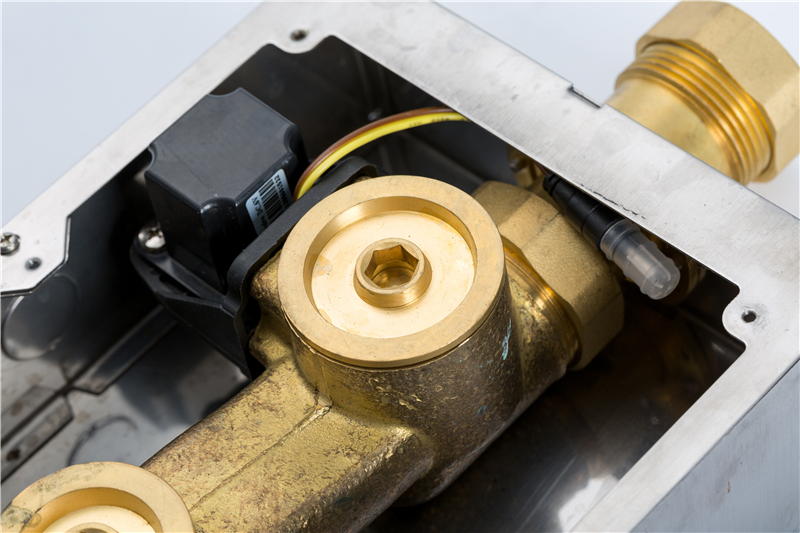

Convenient to Maintain: With built-in flow rate controller & filter, it is easy to maintain and adjust the water volume.

Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent the trap from drying up and odor reversing.

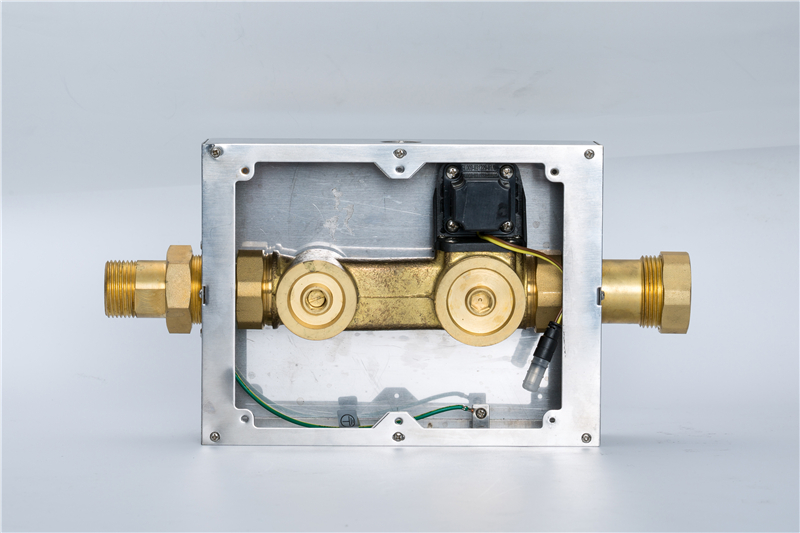

Water Hammer Prevention: Special valve design could prevent the water hammer effectively and reduce the harm on the pipe system.

Use Instructions:

The machine will flush once inducted in the first 3mins afater connecting to power supply.

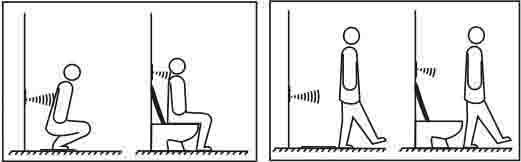

3mins later: when people get into detection zone, the red indicator will flash for time. And after 6s induction confirmation, the machine is ready to flush. It will flushautomatically in 1-2 sec after people leave detection zone. The machine will do not flush when the use time ＜6s. This function is to avoid water waste which casued by mis-working when people walk through.
