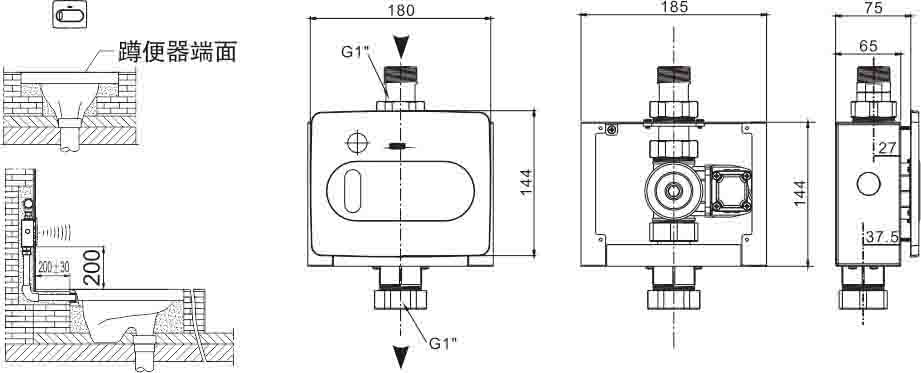

Install Instructions:

Specifications:

① Power:d.c 6V/ a.c.220v

②Static power consumption:≤0.2mW(DC)/≤0.6W(AC)

③ Ambient temperature:1 — 55℃  Protection grade：IP56
④ Suitable water pressure:0.1MPa - 0.6MPa（Best water pressure is between 0.2-0.4Mpa）
⑤ Detection zone:67cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:DN25(G1")，Dia of outlet Pipe: De32
⑦ Dimensions: Panel:180X150mm   Embedded Case:185X144X65mm

⑧Standard: CJ/T194

Features & Functions:

Clean & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.It washes cleanly with no odor.

Power Insufficient Reminder: When batteries run out, the indicator will flash to remind you to change new batteries.

Power Optional: The product could work with AC220v or DC6v according to different need.( AC220V or DC6v is for option.)

Convenient to Maintain: With built-in flow rate controller & filter, it is easy to maintain and adjust the water volume.

Smart Deodorant: When the toilet is not used for a long time, it will flush automatically every 24 hours to prevent the trap from drying up and odor reversing.

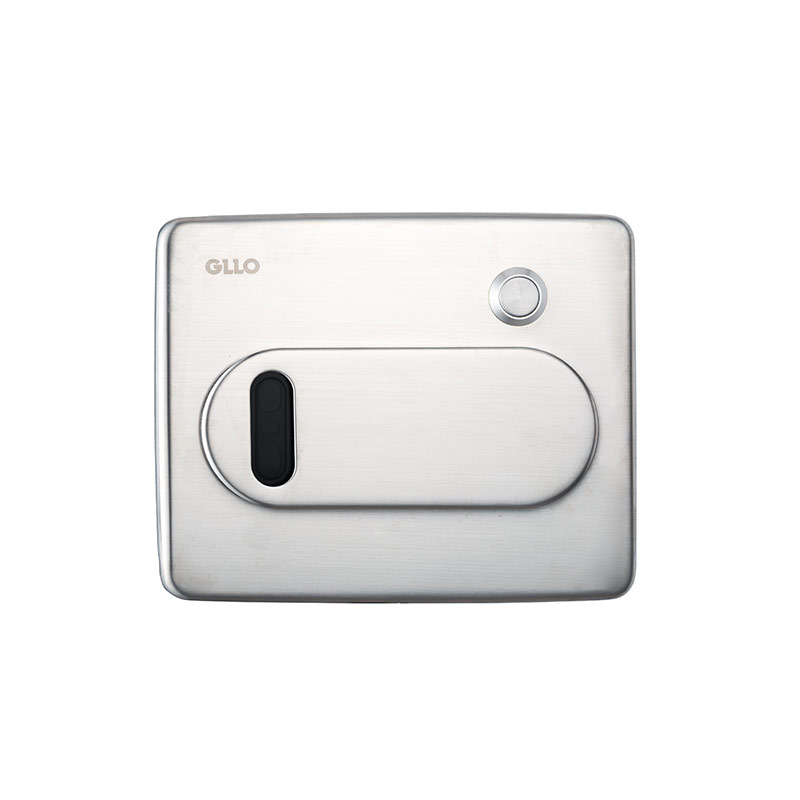

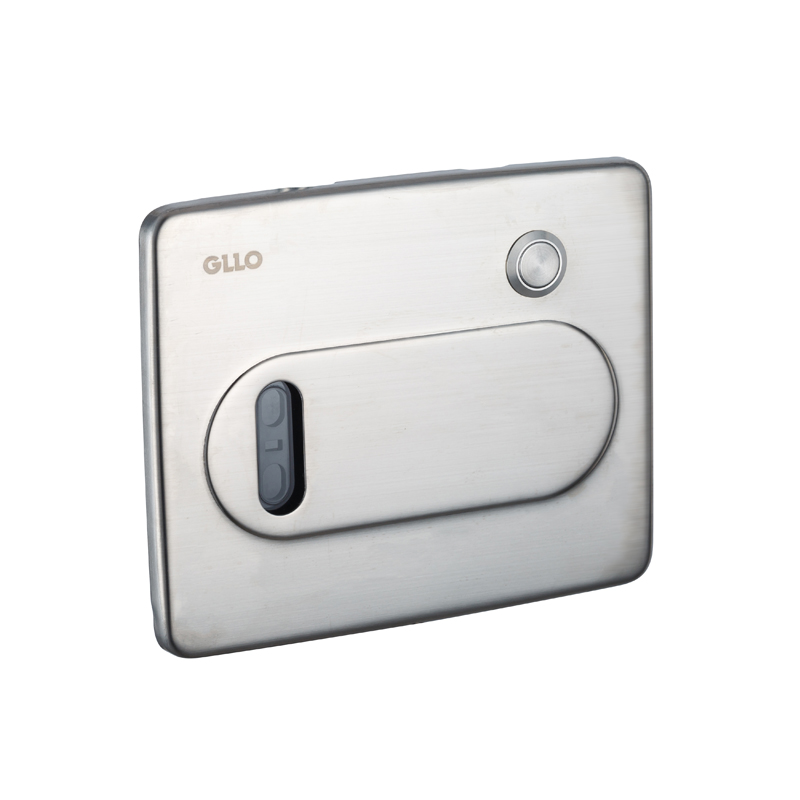

Panel Characteristics: Stainless steel panel with a one-time stamping. Even doing cleaning frequently, it is still as good as new. Excellent rust resistance and it is able to bear scratch, kick and damage.

Water Hammer Prevention: Special valve design could prevent the water hammer effectively and reduce the harm on the pipe system.

Use Instructions:

The machine will flush once inducted in the first 3mins afater connecting to power supply.

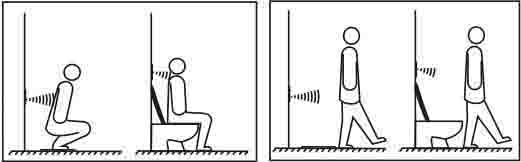

3mins later: when people get into detection zone, the red indicator will flash for time. And after 6s induction confirmation, the machine is ready to flush. It will flushautomatically in 1-2 sec after people leave detection zone. The machine will do not flush when the use time ＜6s. This function is to avoid water waste which casued by mis-working when people walk through.
