Install Instructions:

Specifications:

① Power:d.c 6V

② Power consumptionin static: ≤0.5mW(dc), Battery life: 2 plus year( 100 flushes/day)
③ Remote Type: RF Wireless Remote Control(315MHz)
④ Sensor Range: 5-10cm
⑤ Flush Time: Adjustable
⑥ Flush Volume: 6-9 Liter( adjustable)
⑦ Water Inlet Pipe Bore: PF1/2

⑧Applicable Water Pressure: 0.5-6kgf/cm2

Features & Functions:

Clean & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.

Labor Saving: It could flush automatically when the user wave his hands in front of the sensor. No touch flushing makes it hygienic and safe. It is convenient to be used by the elder and the disable.

Water Saving: Flush two times exactly (toilet & urinal), water flush amount of the urinal is only half of the toilet’s. It is water saving, economic and environmental protection.

Stable and Reliable: Almost no life limit with its water-flow drive structure( the life is only 6 months for the normal motor drive product). It will protect the product from damp and ensure its stability because there is no any electron device and wire.

Easy to Install: There is no wire on the induction controller as it uses wireless remote to flush ,so it is easy to install and maintain.

Attractive Appearance: Special design with beautiful appearance improves the sense of science and technology of bathroom space.

Wide Application: It is widely used in medium or tall toilet cistern, applied in new toilet installation or re-doing project. It is suitable for hospital, sanatorium, office building, department stores, station, school, other public place and household.

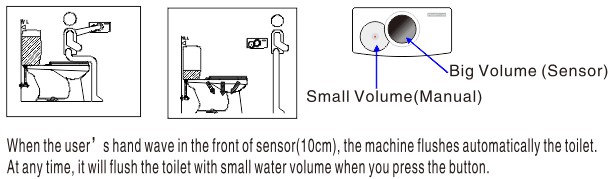

Use Instructions:
