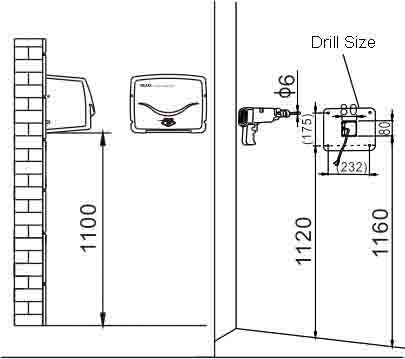

Install Instruction:
Specifications;;
① Power: ac 220v( could be adjustable), 50/60Hz
② Detection zone:30cm(±15%)(To Standard White Board)
③Wattage: 1500W
④ Continuous Working Time: 2mins
⑤ Motor Rottiing Speed: 2500r.p.m
⑥ Protecting Degree: IPX1
⑦ Dimensions:306*62*197mm
Features & Functions:
The automatic hand dryer is made with infrared sensing principle, used Germany first-class technology and producing
equipment, absorbed advantages of other similar products from Europe, America and Japan. Hot air is supplied by
activating its motor and heater. It has the following features.
DRY HAND AUTOMATICALLY:When you put your hands under its wind outlet, it will start up automatically.
STABLE OPERATION:To make its operation more stable and constant, automatic shut-off will be delayed 1-2 seconds after your hands are drawn back.
PROTECTIVE :When its inner temperature reaches 115℃, it will stop heating automatically.
When operating for more than 2 mins, it will shut off automatically to avoid mis-induction caused by obstacles.
SWIFT DRYING ABILITY :Its hot air can dry hands within 40 seconds.
THE DEVICE HAS LOW NOISE AND HIGH SPEED WITH BETTER DRYING EFFECT.
Use Instructions:

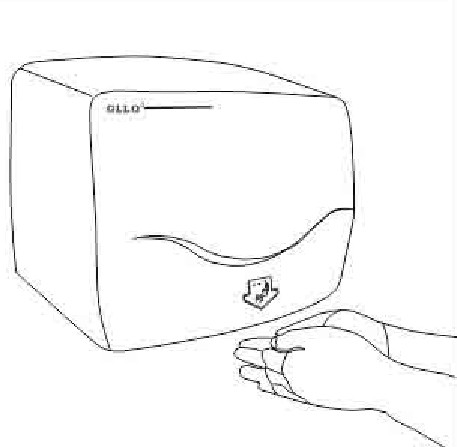

1. The machine will work when you put your hands under the wind outlet. Hands will be easier to dry if rub each other
2. It will stop working automatically within 2s when draw your hands back.
3. It will stop working automatically after continual working for more than 2 mins. It can be used normally after 10s.
|
