Auto Shower Your present position ：Home -- Products -- Auto Shower

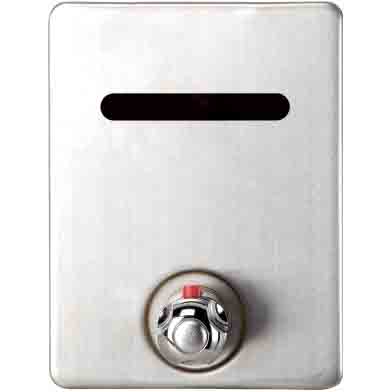

	GL-1014(DC) Automatic Shower [Browse:2167] [No:002] The type : Auto Shower Release time : 2014/4/29 10:28:22 Email:sales01@gllo.com.cn Customer service hotline : 86-0591-87897908

Detailed description

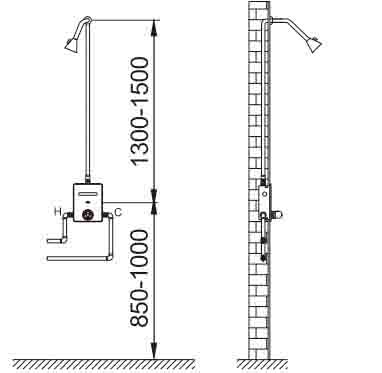

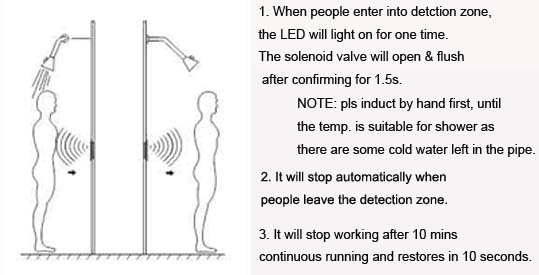

Install Instructions: Specification: ① Power:d.c 6V ② Power consumptionin static: ≤0.5mW(dc) ③ Ambient temperature:1 — 55℃( hot water temperature: 50-85℃, cold water temperature: 8-29 ℃) ④ Suitable water pressure:0.05MPa - 0.6MPa ⑤ Detection zone:67cm(±15%)(To Standard White Board) ⑥ Dia.of inlet/outlet pipe:DN25(G1") ⑦ Dimensions: Panel:165X216mm Embedded Case:146X194X63mm ⑧Max. water temp.: 38℃ ⑨Standard: CJ/T194-2004 Features & Functions: WATER-SAVING & HYGIENIC: Self-open and close without any touch can effectively avoid cross-infection of bacteria. OVER-TIME PROTECTION: The machine will judge there is obstacle within the detection zone when continuous use more than 10 min. The water will be stopped automatically at this time. It will be recovered to use after remove the obstacle or the people leave detection zone for 10s. This function can effective to avoid water waste caused by mislead. MIS-ACTION PREVENTION: The machine control by CPU, and set up1.5s confirming time. It can avoid the machine to flush automatically when some people just go through the detection zone. TEMP. LIMITATING DEVICE: There is Temp. Limitation switch on the temp adjusting button. The water temp. below 38℃ can be adjusted freely. You must to press the limiting switch when need to adjust the temp. over 38℃. The function can effective to avoid scald.(GL-1014) OVER TEMPERATURE PROTECTION: Built-in temp. constant bar. When cold water stop supplying for 5 seconds water supply will stop to avoid scald.(GL-1014) BUILT-IN CHECK VALVE: Set check valve in both cold & hot pipe to avoid cold & hot swapping. CONVENIENT TO MAINTAIN: Its built-in flow controller and filter make maintenance easy even for laypeople. INTELLIGENT: Super mini design PC board is controlled by computer chip. Detection range has been preset, not requiring manual adjustment. LOW POWER CONSUMPTION: 4 AA alkaline batteriescan be used for 2 years based on 300 cycles a day. WALL-CONCEALING DESIGN: It caters to the latest popular. Use Instructions: NOTE: GL-1024 has not over-temperature protection. Pls choose GL-1041 when the hot water temperature unstably.
