Install Instructions:

Specifications:

① Power:d.c 6V/ a.c.220v

② Power consumptionin static: ≤0.5mW(dc), ≤0.6W（AC)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.1MPa - 0.6MPa（Best water pressure is between 0.2-0.4Mpa）
⑤ Detection zone:70cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:DN25(G1")，Dia of outlet Pipe: De32

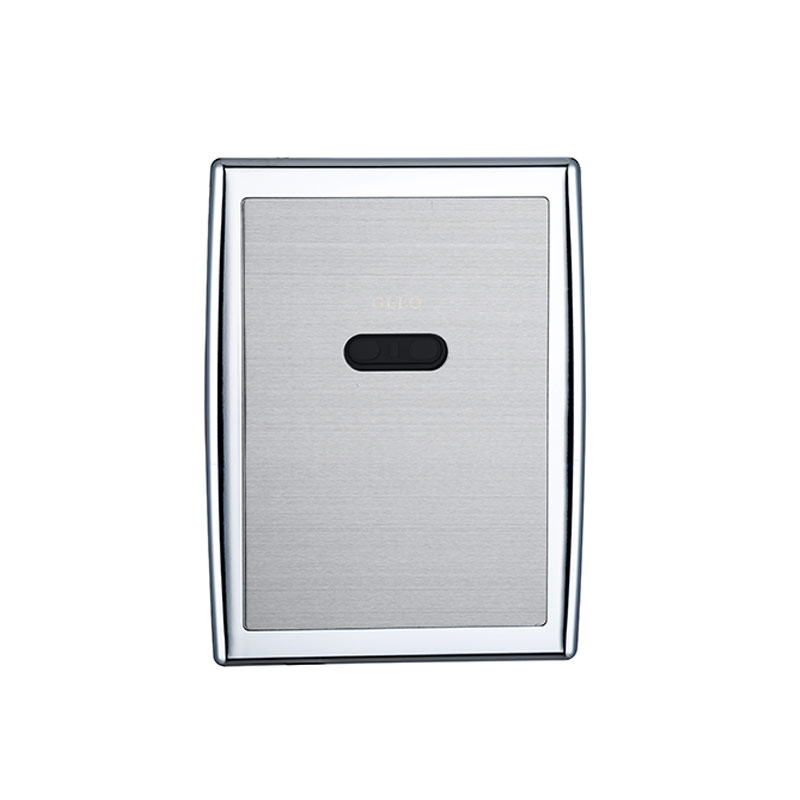

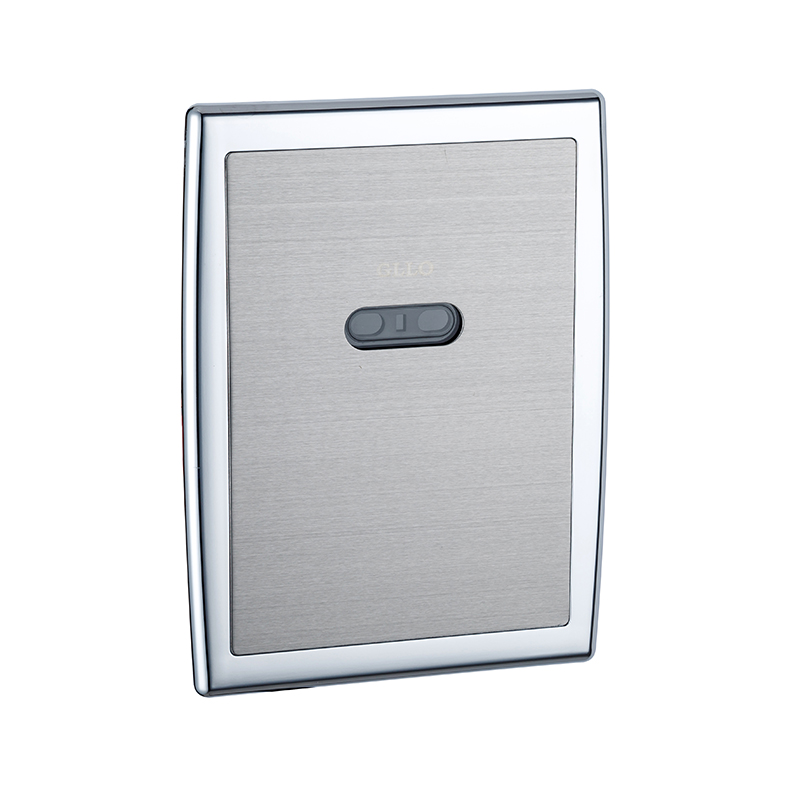

⑦ Dimensions: Panel:152X205mm   Embedded Case:128X182X41mm, Water Tank:390X420X120mm

⑧Max. Transient Flow/set: ≥1.2L/s

⑨Standard: CJ/T194-2004
