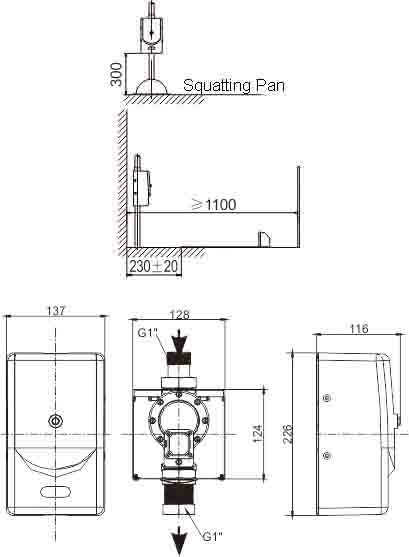

Install Instructions:

Specifications；

① Power:d.c 6V

② Power consumptionin static: ≤0.5mW(dc)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.1MPa - 0.6MPa（Best water pressure is between 0.2-0.4Mpa）

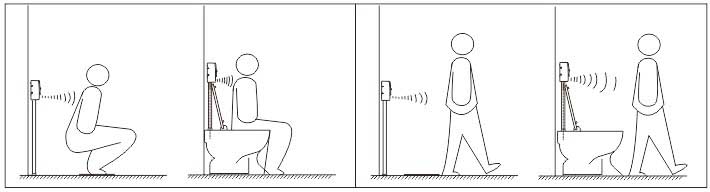

⑤ Detection zone:60cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:DN25(G1")，Dia of outlet Pipe: De32
⑦ Dimensions: 133X222X107mm(WideXHighXThick)

⑧Max. Transient Flow/set: ≥1.2L/s

⑨Standard: CJ/T194-2004

Features & Functions:

Clean & Hygienic:  Self-open and close without any touch can effectively avoid cross infection of bacteria.  Flush thoroughly without any odor.
