Install Instructions:

Specifications；

① Power:d.c 6V/ a.c.220v

② Static power consumption: ≤0.6W（AC)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa（Best Water Pressure: 0.1-0.3MPa）
⑤ Detection zone:70cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″

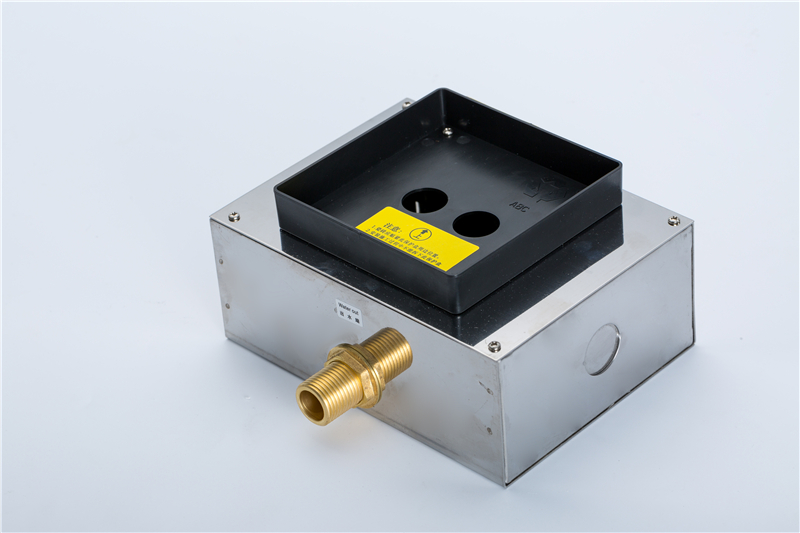

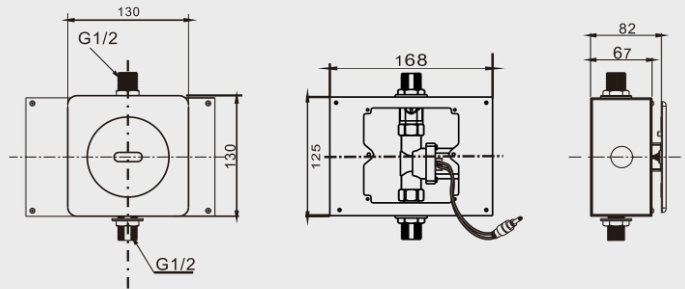

⑦ Dimensions: Panel: 130x130mm Embedded Case: 200x128x65mm

⑧Standard: CJ/T194 QB2948

Features & Functions；

Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.

Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent the trap from drying up and odor reversing.

Clean & Hygienic: Self-open and close w/o any touch can effectively avoid cross-

infection of bacteria.

Water-saving: It can adjust flushing time automatically according to different using frequency, saving water very dramatically.

Convenient to Maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust water volume and clean filter.

Optional Power Supply: Both AC of 220V and DC of battery operation is optional.

Power Saving: 4pcs of AA alkaline batteries can last for 2 years based on 300 cycles/day.

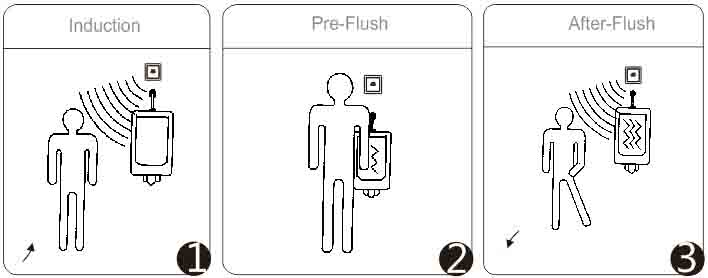

Use Instructions:
