- Auto Urinal Flusher Your present position ：Home -- Products -- Auto Urinal Flusher
-
- GL-2033 [Browse:2114] [No:008]
- The type : Auto Urinal Flusher
- Release time : 2019/3/25 10:23:05
- Email:sales01@gllo.com.cn
- Customer service hotline : 86-0591-87897908
Detailed description .jpg)
(1).jpg)
.jpg)

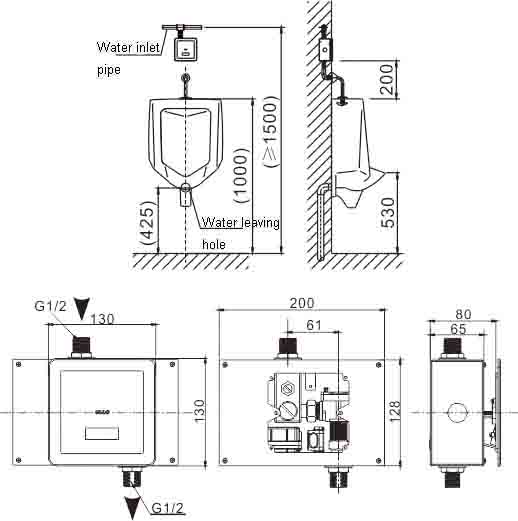

Install Instructions:
Specification:
① Power:d.c 6V/ a.c.220v
② Power consumptionin static: ≤0.5mW(dc), ≤0.6W（AC)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa（Best Water Pressure: 0.1-0.3MPa）
⑤ Detection zone:70cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Dimensions: Pane：Panel: 130x130mm；Embedded Case: 200x128x65mm⑧Standard: CJ/T194-2004
Features & Functions:
Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.
Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent thetrap from drying up and odor reversing.Clean & Hygienic: Self-open and close w/o any touch can effectively avoid cross-infection of bacteria.Water-saving: It can adjust flushing time automatically according to different using frequency, saving water verydramatically.Convenient to Maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust water volume andclean filter.Intelligent Control: Its control circuit is super mini-designed & controlled by micro-computer. The detection zone has beenconfigured before ex-factory. Any manual adjustment is needless.Optional Power Supply: Both AC of 220V and DC of battery operation is optional.Power Saving: 4pcs of AA alkaline batteries can last for 2 years based on 300 cycles/day. Power consumption will be lessthan 0.5kwh/month when connecting to power supply of AC220V.Anti-Scrach Sensor Eye: Using hard glass to be sensor eye can prevent it from scratching & burn.

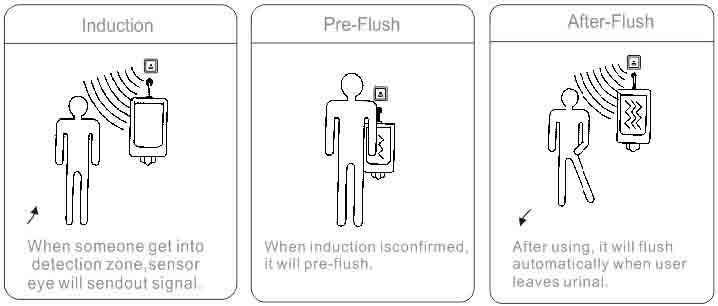

Use Instructions:
.jpg)
