- Auto Urinal Flusher Your present position ：Home -- Products -- Auto Urinal Flusher
-
- GL-0063(AC) [Browse:1081] [No:005]
- The type : Auto Urinal Flusher
- Release time : 2016/8/26 8:38:10
- Email:sales01@gllo.com.cn
- Customer service hotline : 86-0591-87897908

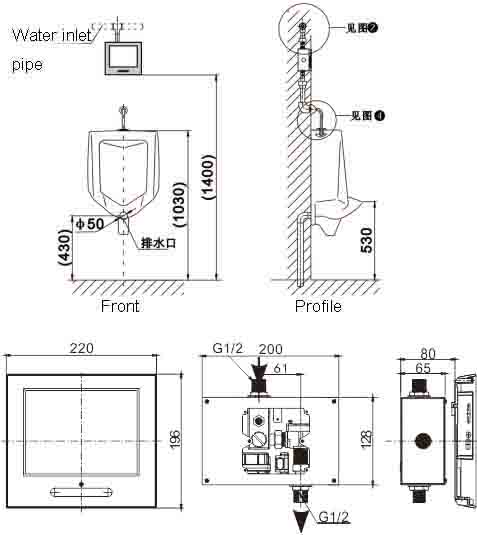

Detailed description Install Instructions:
Specifications:
① Power:a.c 220V
② Power consumptionin static:≤0.6W(a.c)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:70cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Dimensions: Display: W220×H195×T45 Embedded Case: W200×H128×T65⑧Standard: CJ/T194-2004
Features & Functions:
Flush Automatically: When people come into its detection zone, it will flush automatically.
Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent thetrap from drying up and odor reversing.Clean & Hygienic: Self-open and close without any touch can effectively avoid cross-infection of bacteria.Water-saving: It can self-adjust flushing time according to different using frequency, saving water very dramatically.Convenient to Maintain: With a simple built-in flow-rate controller and filter, it can be easily maintained even bynon-professionals.Intelligent: Its control circuit is super mini-designed. The detection zone has been configured before ex-factory. Any manualadjustment is needless. The player will play back the program which is played last time automatically.Power Saving: It's power-saving that the max. power consumption is only 5W.Anti-Scratch Display: W/ strong toughened glass, the sensor eye & LCD screen can be well protected from scratching &dog-end burning.Player:W/ functions of music playing, video playing, picture looping, e-book displaying and so on. Adopting TFT screenwith high resolution ratio, the quality and color of image is lively and vivid. Supporting fast decoding of pictures with JPG,BMP format. Playback and preview of pictures is smooth and hi-effective.The distinctive functions of image rotating,zoom-in, transition effect selection, back-ground music playing etc, will add infinitude funs. Support to play WMA, Mp3 formatted audio. W/ built-in speaker. Support H.264/MPEG-4/M-JPEG video decoding. It has additional functions of e-calendar,clock,e-book browsing etc. Customization module designed meticulously can help you to customize enterprise show &advertisement easily. Built-in NAND FLASH supports SD/MMC and U-disk.

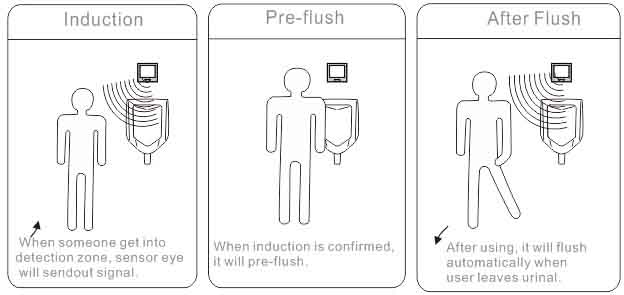

Use Instructions:
.jpg)
