- Auto Urinal Flusher Your present position ：Home -- Products -- Auto Urinal Flusher
-
- GL-109MX(DC) [Browse:812] [No:004]
- The type : Auto Urinal Flusher
- Release time : 2013/12/23 9:39:36
- Email:sales01@gllo.com.cn
- Customer service hotline : 86-0591-87897908

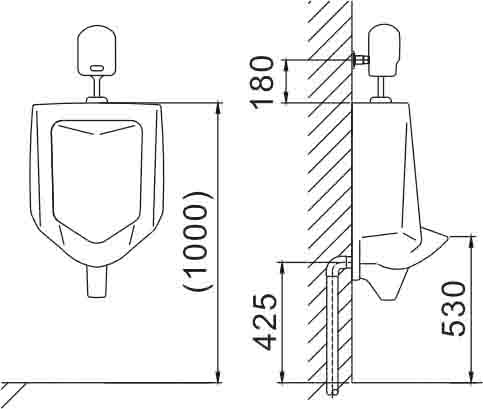

Detailed description Install Instructions:
Specification:
① Power:d.c 6V
② Power consumptionin static:≤0.5mW(d.c)
③ Ambient temperature:1 — 55℃, Humidity: ≤95% R.H
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:50cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Dimensions: 80x130x90mm⑧Standard: CJ/T194-2004
Features & Functions:
Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.
Clean & Hygienic: Self-open and close w/o any touch can effectively avoid cross infection of bacteria.Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent thetrap from drying up and odor reversing.Water-saving: It can adjust flushing time automatically according to different using frequency, saving water verydramatically.Intelligent Control: Its control circuit is super mini-designed & controlled by micro-computer. The detection zone has beenconfigured before ex-factory. Any manual adjustment is needless.Power Insufficient Reminder: When batteries run out, its indicator will flash to remind you to change batteries.Power Saving: 4pcs of AA alkaline batteries can last for 2 years based on 300 cycles/day.Easy to install: Exposed design, do not need to embed the sensor part. Installation fast and easy.Convenient to Maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust water volume andclean filter.

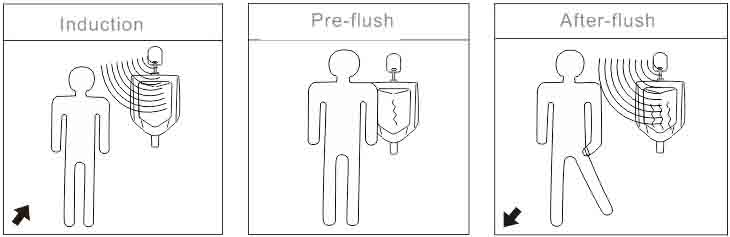

Use Instructions:
