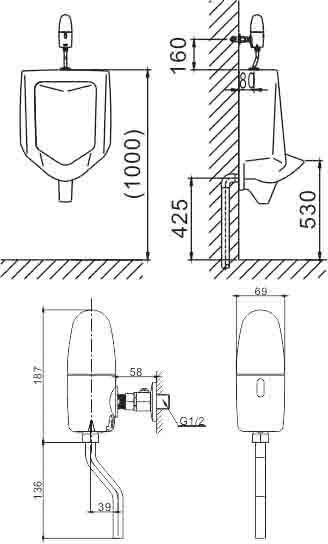

Install Instructions:

Specification:

① Power:d.c 6V

②Static power consumption:≤0.2mW(DC)(4pcs of AA alkaline batteries can last for 2 years based on 300 cycles/day)

③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:60cm(±10%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Dimensions:187x69x69mm

⑧Standard: CJ/T194 QB2948

Features & Functions:

Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.

Clean & Hygienic: Self-open and close w/o any touch can effectively avoid cross-

infection of bacteria.

Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent the trap from drying up and odor reversing.

Water-saving: It can adjust flushing time automatically according to different using frequency, saving water very dramatically.

Intelligent Control: It will stop flushing automatically when it is lack of electric power. Its control circuit is super mini-designed & controlled by micro-computer.

Power Saving: 4pcs of AA alkaline batteries can last for 2 years based on 300 cycles/day.

Convenient to Install: Exposed type design without embedded case.

Convenient to Maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust water volume and clean filter.

Compact, light, suitable for public places.

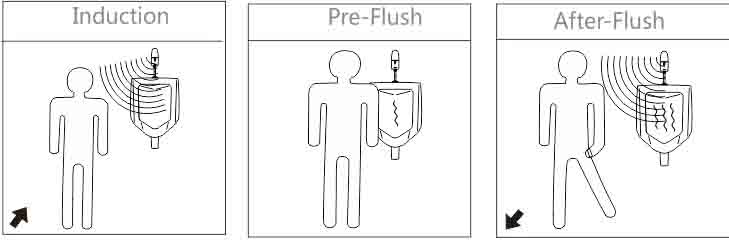

Use Instructions:
