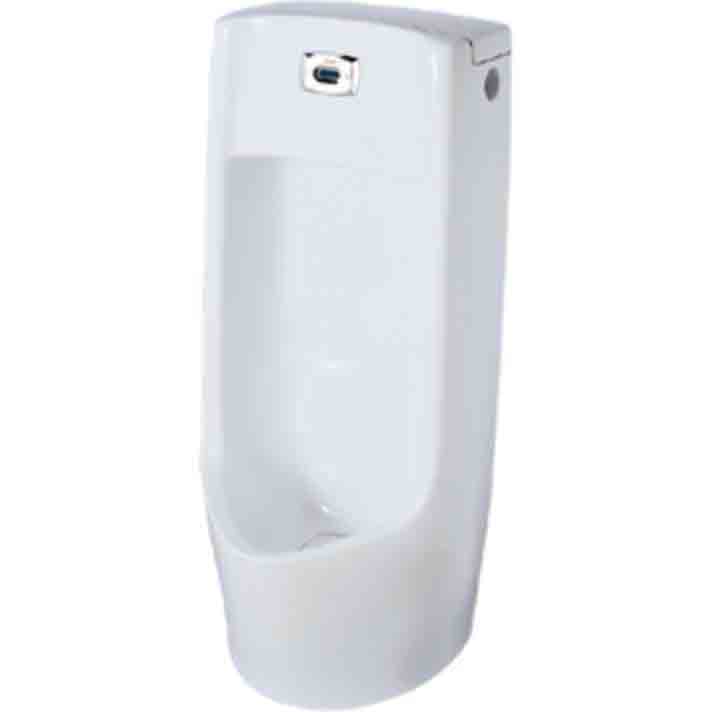

- Urinal with Sensor Your present position ：Home -- Products -- Urinal with Sensor
-
- GL-7101 [Browse:1627] [No:004]
- The type : Urinal with Sensor
- Release time : 2013/12/23 8:55:41
- Email:sales01@gllo.com.cn
- Customer service hotline : 86-0591-87897908

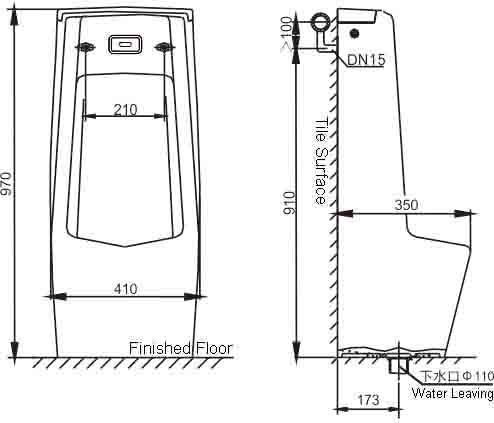

Detailed description Install Instruction:
.jpg)
Specification:
① Power:d.c 6V
② Power consumptionin static:≤0.5mW(d.c)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:60cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Dimensions:410*970*350mm⑧Standard: CJ/T194-2004
Features & Functions:
GL-7101 Ceramic Urinal w/ Sensor Flusher is designed & produced according to IR-Sensor principle. Its intelligent
flushing service and intimate function design will bring you a quality living experience. It has the following features.Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 12 hours to prevent the trapfrom drying up and odor reversing.Clean & Hygienic: Self-open and close w/o any touch can effectively avoid cross-infection of bacteria.Water-saving: It can adjust flushing time automatically according to different using frequency, saving water very dram-atically.Convenient to Maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust water volume andclean filter.Intelligent: Its control circuit is super mini-designed & controlled by micro-computer. The detection zone has beenconfigured before ex-factory. Any manual adjustment is needless.Optional Power Supply: Both AC of 220V and DC of battery operation is optional.Power Saving: 4pcs of AA alkaline batteries can last for 2 years based on 300 cycles/day. Power consumption will be lessthan 0.5 kwh/month when connecting to power supply of AC220V.Installation Features: Integrate sensor & flusher with ceramic. Do not need to pre-embed sensor equipment. It is quick,easy and convenient to be installed w/o any special requirement to wall thickness. Turn Off Water Automatically WhenThe Power Source is Abnormal: It will stop flushing automatically when the power supply is cut off suddenly.

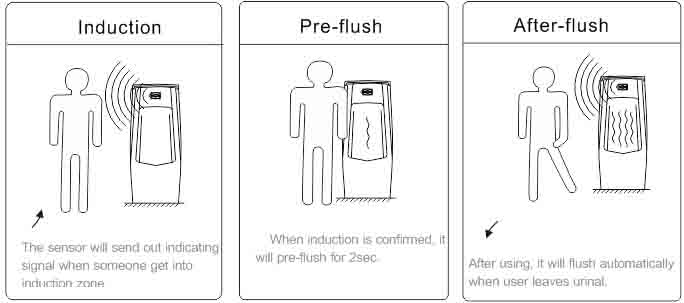

Use Instructions:
.jpg)
