- Urinal with Sensor Your present position ：Home -- Products -- Urinal with Sensor
-
- GL-7104 [Browse:1675] [No:002]
- The type : Urinal with Sensor
- Release time : 2013/12/22 17:20:13
- Email:sales01@gllo.com.cn
- Customer service hotline : 86-0591-87897908

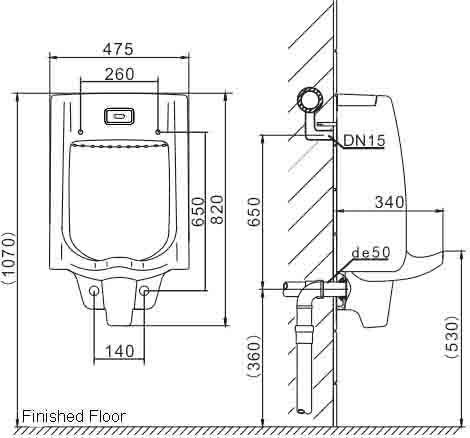

Detailed description Install Instruction:
Specification:
① Power:d.c 6V
② Power consumptionin static:≤0.5mW(d.c)
③ Ambient temperature:0 — 55℃
④ Suitable water pressure:0.1MPa - 0.6MPa
⑤ Detection zone:60cm(±15%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Dimensions:830*475*350mm⑧Standard: CJ/T194-2004
Features & Functions：
Flush Automatically: After being used, the urinal will flush automatically by the sensor flusher.
Smart Deodorant: When the urinal is not used for a long time, it will flush automatically every 24（12） hours toprevent the trap from drying up and odor reversing.Clean & Hygienic: Self-open and close w/o any touch can effectively avoid cross-infection of bacteria.Water-saving: It can adjust flushing time automatically according to different using frequency, saving watervery dramatically.Convenient to Maintain: With a built-in flow rate controller & filter, non-professionals can easily adjust watervolume and clean filter.Intelligent: Its control circuit is super mini-designed & controlled by micro-computer. The detection zonehas been configured before ex-factory. Any manual adjustment is needless.Optional Power Supply: Both AC of 220V and DC of battery operation is optional.Power Saving: 4pcs of AA alkaline batteries can last for 2 years based on 300 cycles/day. Powerconsumption will be less than 0.5 kwh/month when connecting to power supply of AC220V.

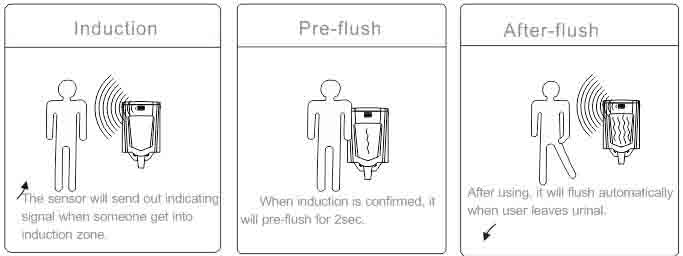

Use Instructions:
.JPG)
