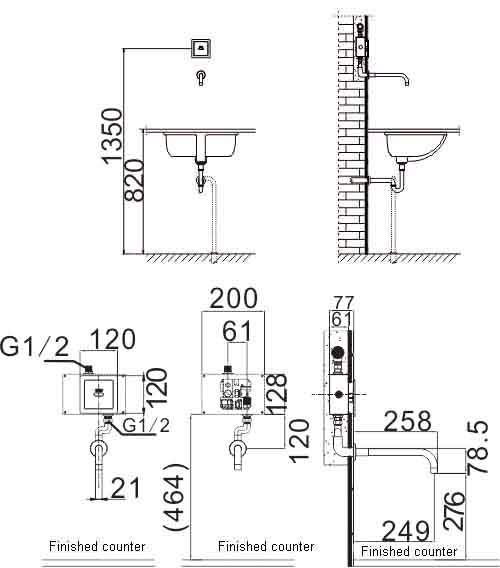

Install Instruction:

Specifications:

① Power:D.C 6V/ A.C 220V(According to the different needs to select: DC 6V battery or AC 220V power supply)

②Static power consumption:≤0.2mW(DC)/≤3W(AC)

③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:75cm（±10%）(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Dimensions:21*80*268mm

⑧Humidity:≤95%R.H
⑨Standard: CJ/T194

Features & Functions:

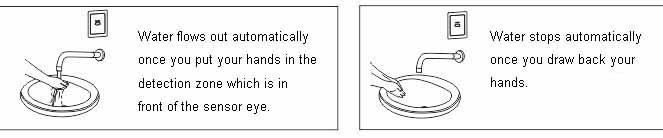

1.Water saving: Water comes out once your hands approach its sensor eye and stops when you draw your hands back.

2.Hygienic:Since hands do not touch faucet to wash, it is convenient, hygienic and able to avoid bacterial mutual-infection effectively.

3.Power economical:4 AA alkaline batteries can last 2 years based on 300 cycles a day.

4.Easy to maintain:Its built-in filter makes sundries in water easy to clear.

5.Over-time protection:It will turn off water automatically after 60 seconds of flowing and restore to the normal in 10 seconds.

6.Beautiful and novel: The square shape design meet the trend of modern simple life.

7.With built-in flushing solenoid valve and soft water, water comes out smoothly and easy to use.

Material description:

①Faucet body: brass plating

② Control box: Engineering ABS

③Inlet and outlet parts: Brass

④Pipe lock parts: 304 stainless steel

Use Instructions:
