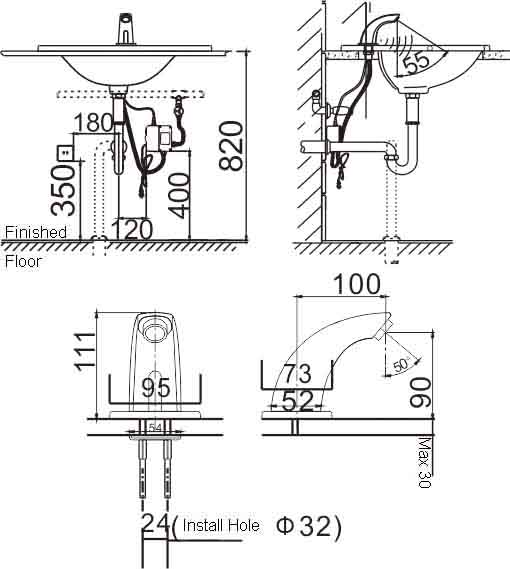

Install Instruction:

Specification:

① Power:d.c 6V( GL-1041) / ac 220v( GL-0041)

② Static power consumption:≤0.6W(AC)

③ Ambient temperature:1℃ — 55℃

④Detection zone:33cm(±10%)(To Standard White Board 29.7cm×29.7cm)
⑤Dia.of inlet/outlet pipe:(DN15)G1/2″

⑥ Suitable water pressure:0.05MPa - 0.6MPa
⑦Dimensions:95x111x137mm

⑧Standard: CJ/T194

Features & Functions:

1.Water saving: Water comes out once your hands approach its sensor eye and stops when you draw your hands back.

2.Hygienic: Since hands do not touch faucet to wash, it is convenient, hygienic and able to avoid bacterial mutual-infection effectively.

3.Power economical: 4 AA alkaline batteries can last 2 years based on 300 cycles a day.

4.Over-time Protection: It will cut water automatically after 60 seconds of flowing and restore to the normal in 10 seconds.

5.Easy to maintain: Its built-in filter makes sundries in water easy to clear.

6.Power Insufficient reminder : When batteries run out, its indicator will flash to remind you to change batteries.

7.Intelligent control : According to basin size and use environment automatically adjust detection zone.

8.Beautiful and novel: The square shape design meet the trend of modern simple life.

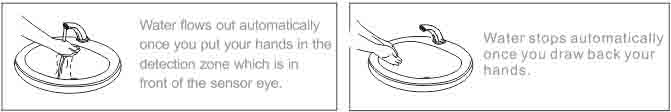

​Use Instructions:
