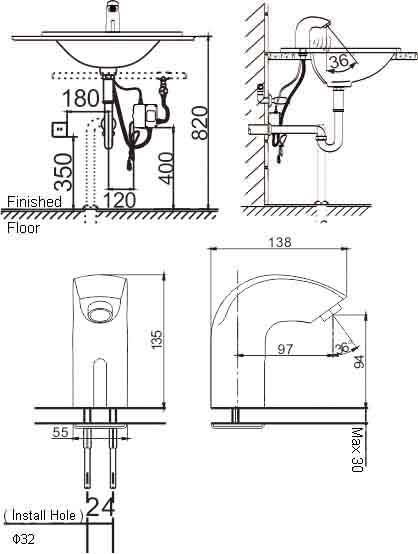

Install Instruction:
Specifications:
① Power:d.c 6V/ a.c 220v
② Static power consumption:≤0.6w(a.c.)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zone:33cm(±10%)(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Dimensions:55*135*138mm
⑧Standard: CJ/T194
Features& Functions:
1.Water saving: Water comes out once your hands approach its sensor eye and stops when you draw your hands back.
2.Hygienic:Since hands do not touch faucet to wash, it is convenient, hygienic and able to avoid bacterial mutual-infection effectively.
3.Power economical:4 AA alkaline batteries can last 2 years based on 300 cycles a day.
4.Easy to maintain:Its built-in filter makes sundries in water easy to clear.
5.Over-time protection:It will turn off water automatically after 60 seconds of flowing and restore to the normal in 10 seconds.
6.Beautiful and novel: The square shape design meet the trend of modern simple life.
7.With built-in flushing solenoid valve and soft water, water comes out smoothly and easy to use.
Material description:
①Faucet body: brass plating
② Control box: Engineering ABS
③Inlet and outlet parts: Brass
④Pipe lock parts: 304 stainless steel

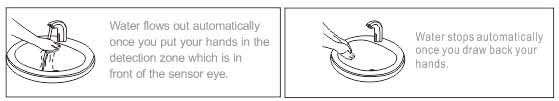

Use Instructions:
|
