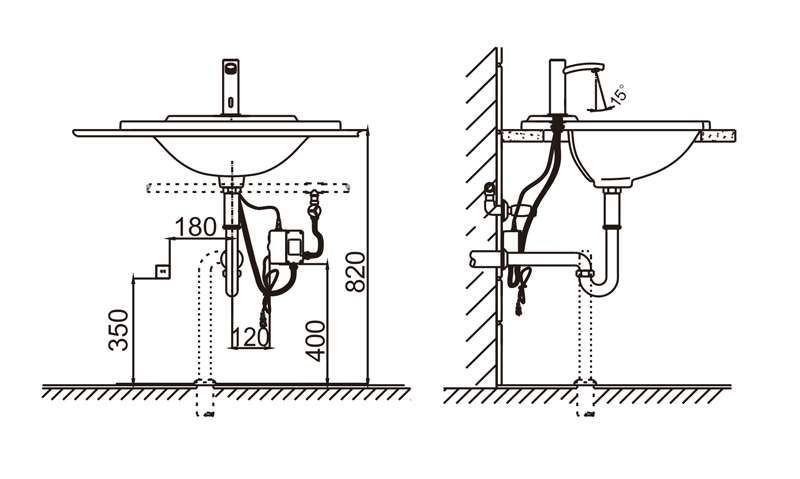

Install Instruction:

Specification:

① Power:D.C 6V/ A.C 220V(According to the different needs to select: DC 6V battery or AC 220V power supply)

② Static power consumption:≤0.6w(A.C.)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa(The best water pressure 0.1-0.3MPa)
⑤ Detection zone:33cm（±10%）(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″

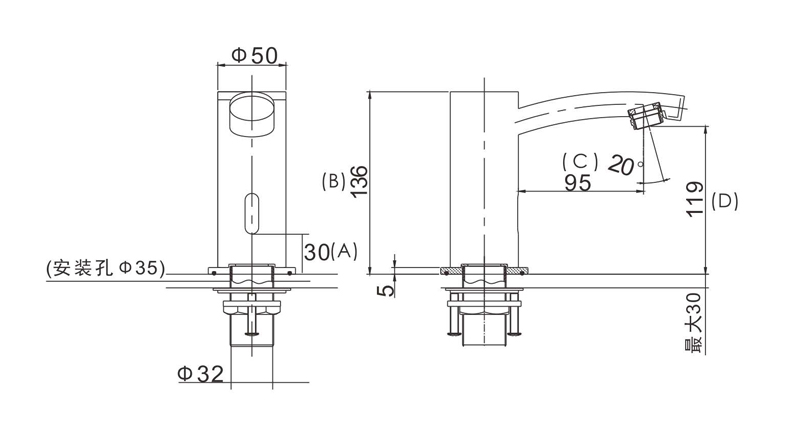

⑦ Dimensions:64*136*172mm

⑧Standard: CJ/T194

Features & Functions:

1.Water saving: Water comes out once your hands approach its sensor eye and stops when you draw your hands back.

2.Hygienic: Since hands do not touch faucet to wash, it is convenient, hygienic and able to avoid bacterial mutual-infection effectively.

3.Power Economical:4 AA alkaline batteries can last 2 years based on 300 cycles a day.

4.Easy to maintain:Its built-in filter makes sundries in water easy to clear.

5.Beautiful and novel: The square shape design meet the trend of modern simple life.

6.Over-time protection:It will turn off water automatically after 60 seconds of flowing to avoid the waste of water resources .

7.Power Insufficient reminder : When batteries run out, its indicator will flash to remind you to change batteries.

Material description:

①Faucet body: brass plating

② Control box: Engineering ABS

③Inlet and outlet parts: Brass

④Pipe lock parts: 304 stainless steel

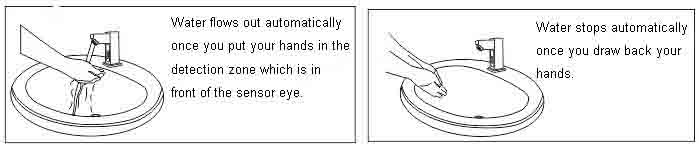

Use Instructions:
