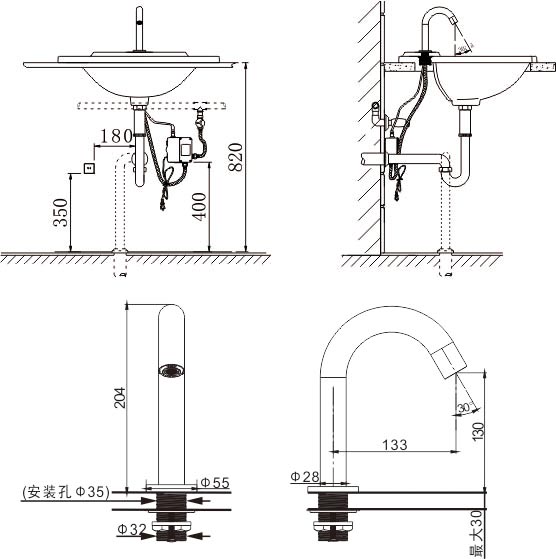

Install Instruction:

Specification:

① Power:D.C. 6V/ A.C.220v

② Static power consumption:≤0.5mW(D.C)/≤0.6w(A.C)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa(The best water pressure 0.1-0.3MPa)
⑤ Detection zone:10-27cm(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦Standard: CJ/T194

Features & Functions:

Concealed Sensor Eye: The sensor is concealed at the water outlet with elegant appearance.

Sensor Distance Self-adjusting: The sensor starts to self-adjust the sensing distance and the indicator will flash on for 8s( total for 10s) when the power is on. (Note: no object is allowed to move in front of the sensor eye.)

Water Saving & Hygienic: Without human operation, flushing action is done by machine automatically, effectively eliminate the bacteria infection.

Overtime Protection: It will stop flush automatically after 60s f lowing and restore to normal in 10s.This feature set is effective to avoid the waste of water resources caused by mis-operation.

Easy to Maintain: Non-professional person can maintain the faucet easily with its built-in filter.

Power Saving: 4pcs AA alkaline batteries can last 2 years based on 300 cycles a day.

Power Optional: The product could work with AC220v or DC6v according to different need.( AC220V or DC6v is for option.)

Power Insufficient reminder : When batteries run out, its indicator will flash to remind you to change batteries.

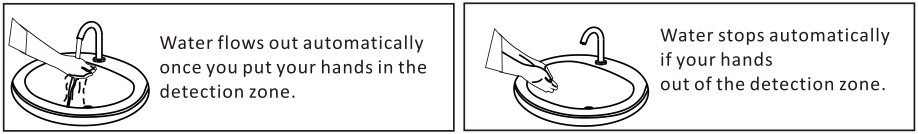

Use Instructions:
