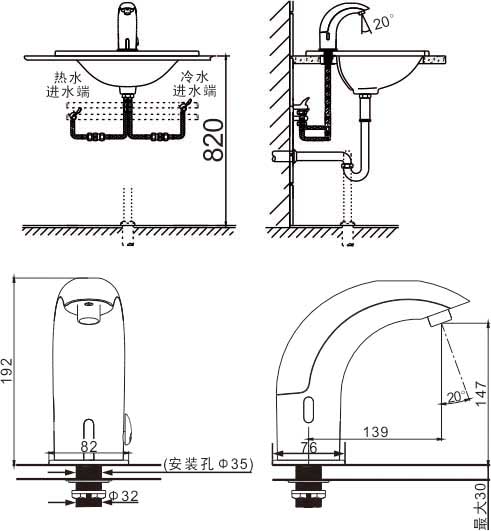

Detailed description Install Instruction:
Specification:
① Power:d.c 6V
② Power consumptionin static:≤0.5mW(d.c)
③ Ambient temperature:0 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa
⑤ Detection zoneMain sensor:36cm(±15%)
Side sensor:10cm(±15%)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦Confirmation time: 3s⑧Water temp.: 5℃-29℃( cold water), 50℃-85℃(hot water)
⑨Using Environmental Temp.: 0℃-55℃
⑩ Dimensions:203×74×192mm
⑾Standard: CJ/T194-2004
Features & Functions:
WATER-SAVING & HYGIENIC: Since hands do not touch faucet to wash, it is convenient, hygienic and able to avoid cross-infection of bacteria effectively.
OVER-TIME PROTECTION: This function can effectively avoid wasting water caused by wrong action.1. For Master Sensor: It will cut off water supply automatically after 60sec of flowing and return to normal after 10sec of no induction.2. For Sub-sensor: It will cut off water supply automatically after 1.5 mins of flowing and return to normal after 10sec of no induction.BUILT-IN CHECK VALVE: Set check valve in both cold and hot water pipe to avoid cold & hot water swapping.EASY TO MAINTAIN: Its built-in filter makes sundries in water easy to clean by non-professionals.INTELLIGENCE: Its control circuit is super-minimized design and its action is controlled by micro-computer. The detection zonehas been set up before ex-factory. No need to debugged before using.POWER SAVING: 4pcs of AA alkaline batteries can last for 2 years based on 300 cycles a day.TEMP.-ADJUSTABLE: Water can be adjusted to suitable temp. By hand freely.EASY TO INSTALL: It is integrative design. Do not need to install the control box and lay wires.
