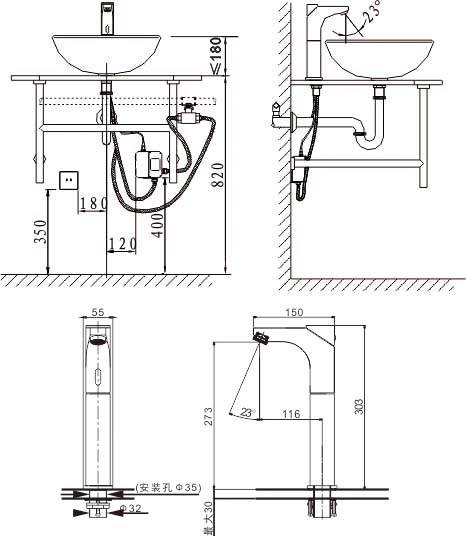

Install Instruction:

Features & Functions:

1.Water saving: Water comes out once your hands approach its sensor eye and stops when you draw your hands back.

2.Hygienic:Since hands do not touch faucet to wash, it is convenient, hygienic and able to avoid bacterial mutual-infection effectively.

3.Power Economical:4 AA alkaline batteries can last 2 years based on 300 cycles a day.

4.Power supply optional: AC 220V power supply and DC 6V battery for chose.

5.Over-time protection:It will turn off water automatically after 60 seconds of flowing and restore to the normal in 10 seconds.

6.Easy to maintain:Its built-in filter makes sundries in water easy to clear.

7.Power Insufficient reminder : When batteries run out, its indicator will flash to remind you to change batteries.

8.Water supply mode:This faucet have 3 control ways of induction, manual and manual + induction, when elected induction into the water, the water is controlled by sensors; when elected manual into the water, the water is controlled by a manual switch; When elected sensor and manual way into water.The sensor and manual switch can control the water comes out.

Specification:

① Power:D.C 6V/ A.C 220V(According to the different needs to select: DC 6V battery or AC 220V power supply)

② Static power consumption:≤0.6w(A.C.)
③ Ambient temperature:1 — 55℃
④ Suitable water pressure:0.05MPa - 0.6MPa(The best water pressure 0.1-0.3MPa)
⑤ Detection zone:36cm（±15%）(To Standard White Board)
⑥ Dia.of inlet/outlet pipe:(DN15)G1/2″
⑦ Standard: CJ/T194

Material description:

①Faucet body: brass plating

② Control box: Engineering ABS

③Inlet and outlet parts: Brass

④Pipe lock parts: 304 stainless steel
