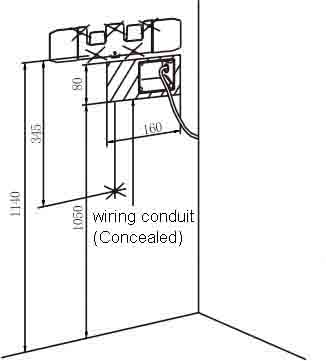

Install Instruction:

Specifications:

① Power: ac 220v( could be adjustable), 50/60Hz

② Detection zone:15cm(±15%）(To Standard White Board)
③Wattage: 1500W
④ Continuous Working Time: 2mins
⑤ Motor Rottiing Speed: 1700r.p.m
⑥ Protecting Degree: IPX3
⑦ Dimensions:250*175*520mm

Features & Functions:

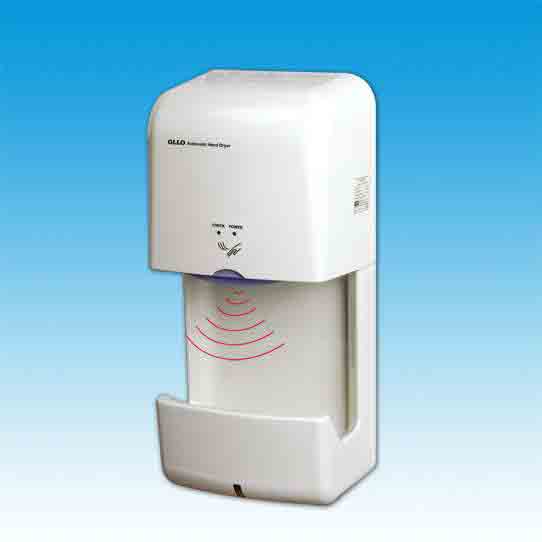

The automatic hand dryer is made with infrared sensing principle, used Germany first-class technology and producing

equipment, absorbed advantages of other similar products from Europe, America and Japan. Hot air is supplied by

activating its motor and heater. It has the following features.

DRY HAND AUTOMATICALLY：When you put your hands under its wind outlet, it will start up automatically.

Dry Hands Quickly:Making use of high-speed airflow, it blows down beads from hands to dry them quickly with low power consumption, saving electricity dramatically compared with others.

Work Steadily:It will continue working for 1-2s after hands are drawn back to keep the machine working steadily.

Over-heat Protection: It will stop working automatically once the temperature inside the machine is over-heated.

Over-time Protection:In order to avoid mis-operation.ensed by other things, it will stop working automatically after 2-minutes continuous running.

Hygienic:The water on the hand is blown to the drain pan and stored in the tray It is avoided to wet the floor and inconvenient clear.

High-speed running, Large wind-out amount, Drying hands quickly, Especially saving energy.

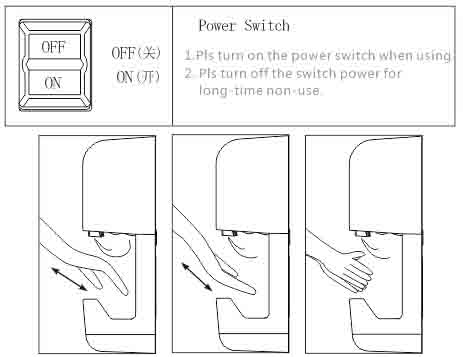

Use Instructions:

1.Firstly put the back of hands to the wind outlet for drying, then  turn over the hands to dry the palm. Repeat it 2 or 3 times to finish drying.
